1.5″ Pines #1 Tube Bender - AM23304

Product Details

Stock Number	AM23304
Brand	Pines
Capacity	1.50 inches

Specifications

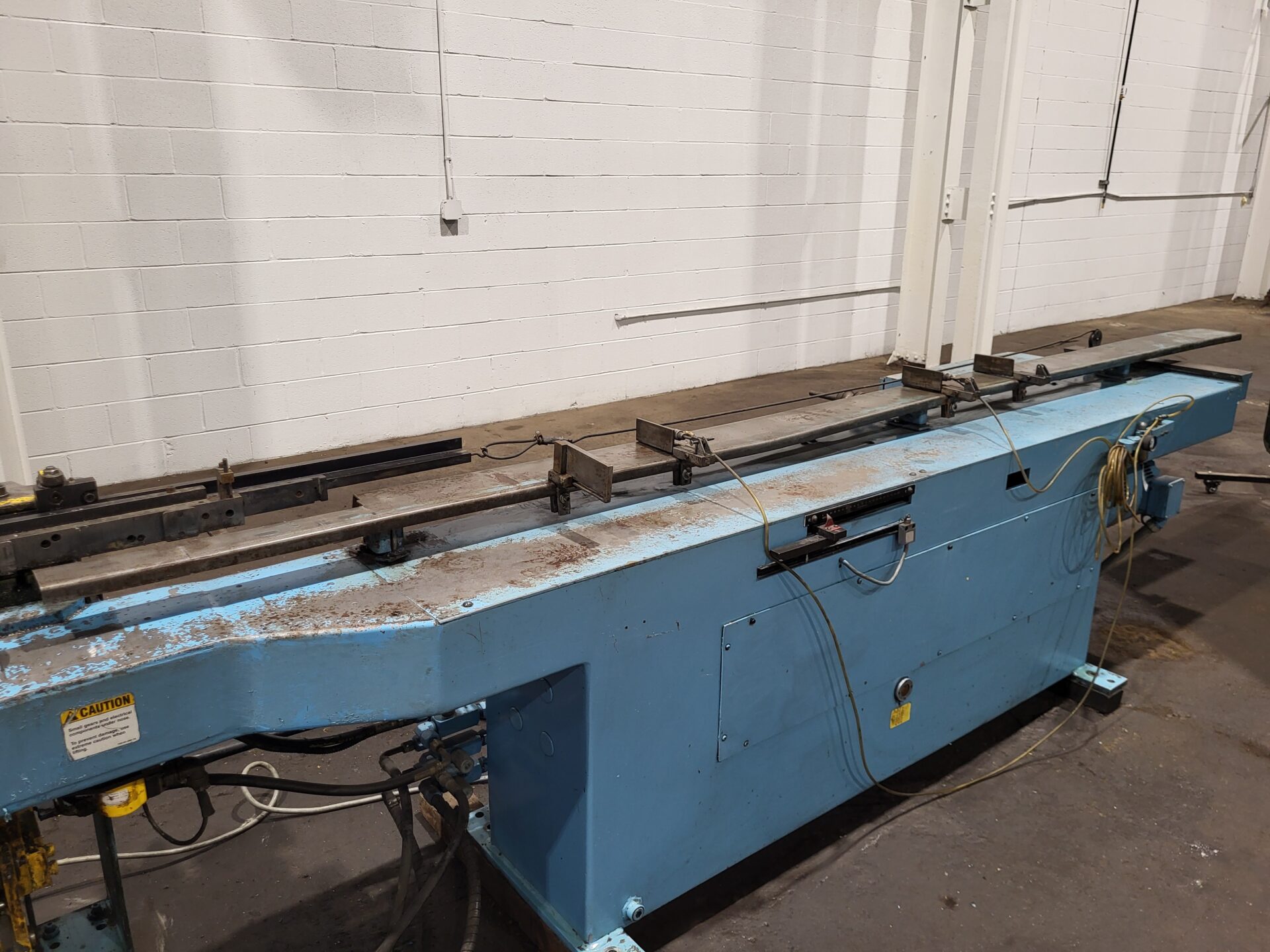

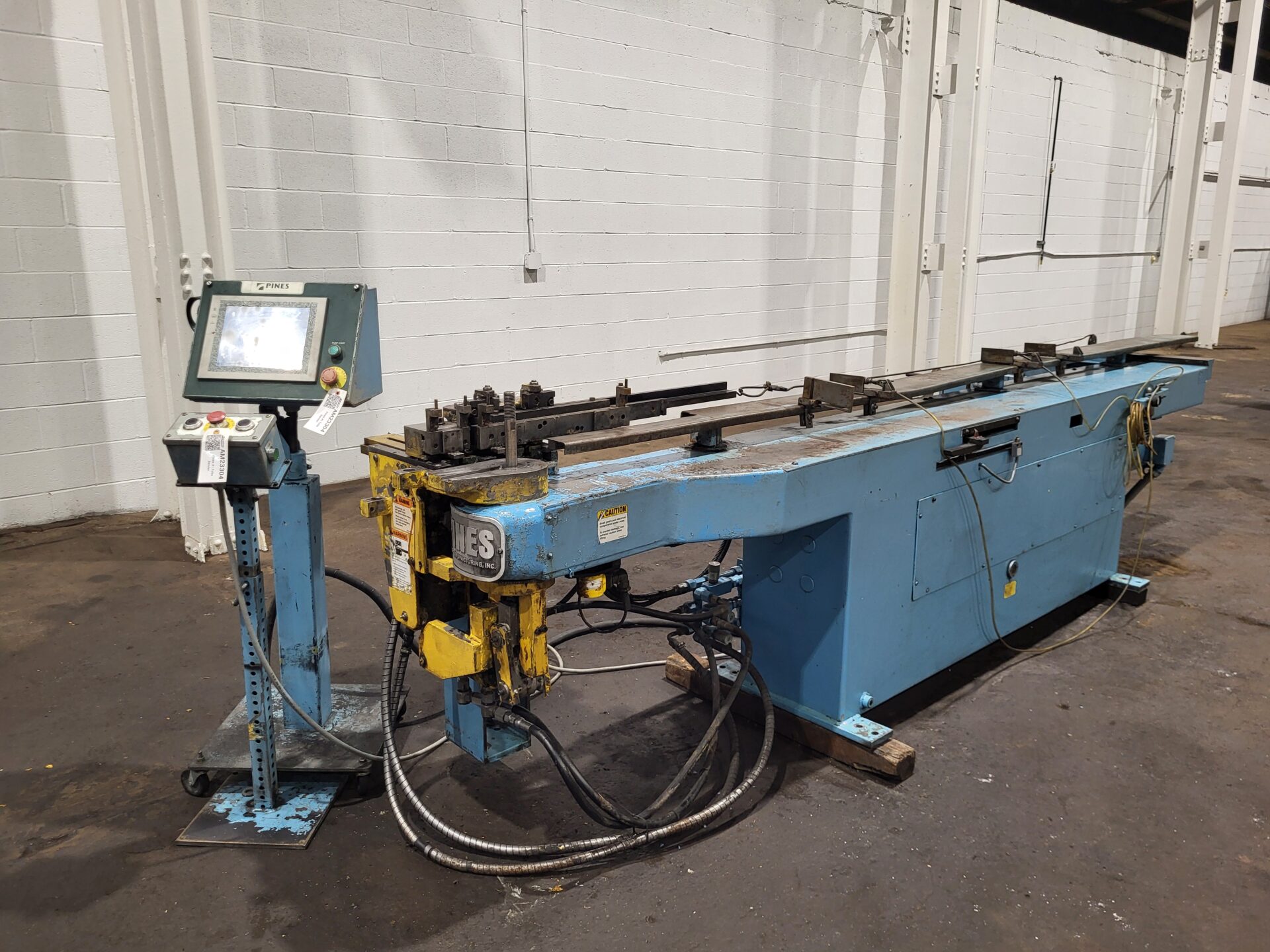

1.5″ Pines #1 Tube Bender

Pines horizontal type tube bending machine with split-die
Used Model: #1

Capacities:

Minimum Capacity: 1/8″ OD
Max Capacity:
Round Mild-Steel: 1-1/2” x .109” wall
Round Stainless: 1-3/8” x .065” wall
Round Non-Ferrous: 1-1/2” x .188” wall
Square Mild Steel: 1-1/8″ x .120″ wall
Pipe: 1” schedule 80 (1.315″ OD x .179″ wall)
Maximum rotation: 180° + springback
Maximum Centerline Radius: 8″
Maximum Length of material: Unlimited
Bending Rotation: Left-Hand (Counter Clockwise)

Includes:

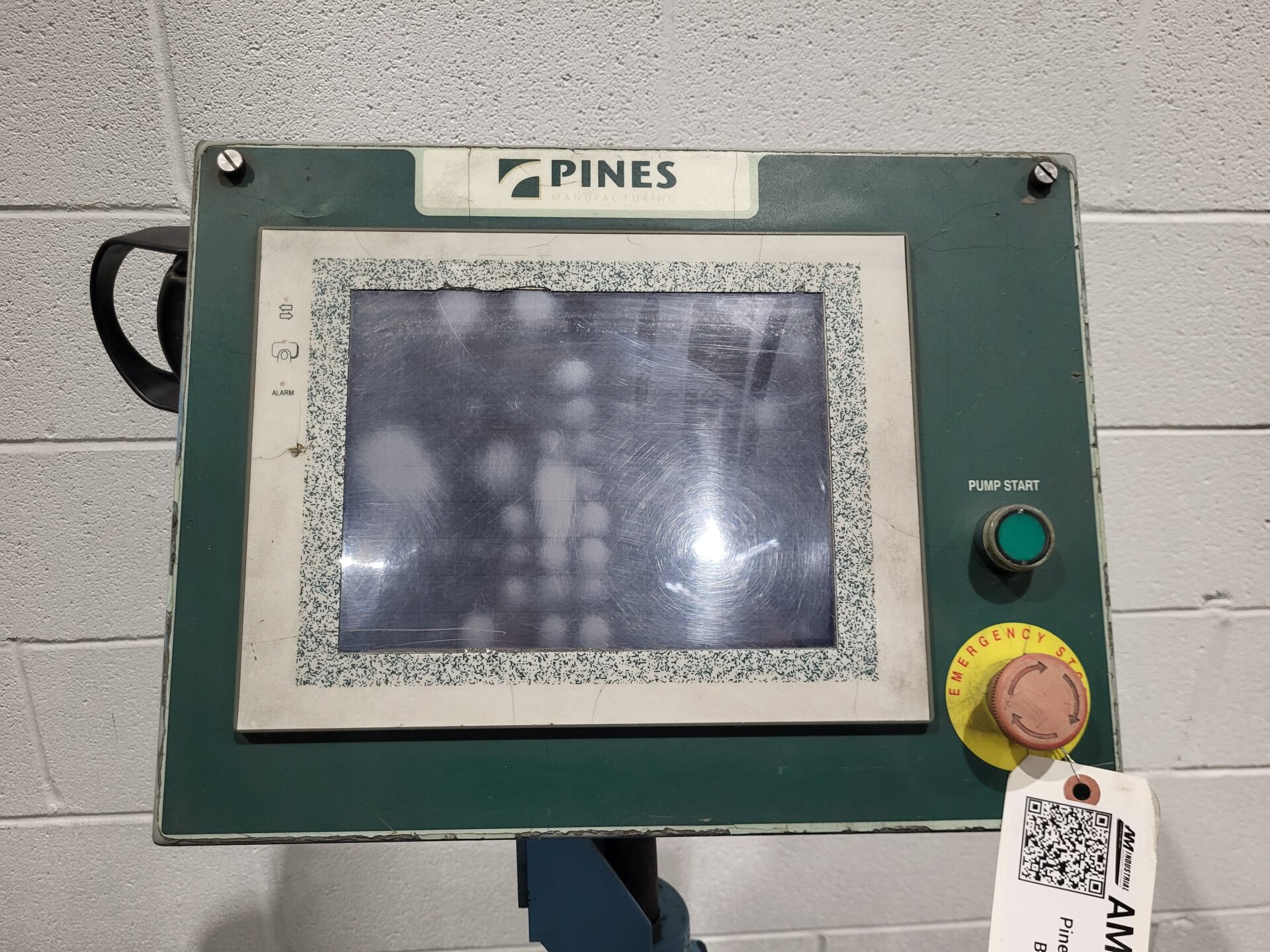

Touchscreen Pedestal mounted operator control system
Encoder for accurate degree of bend
Nose-mounted split-die set-up

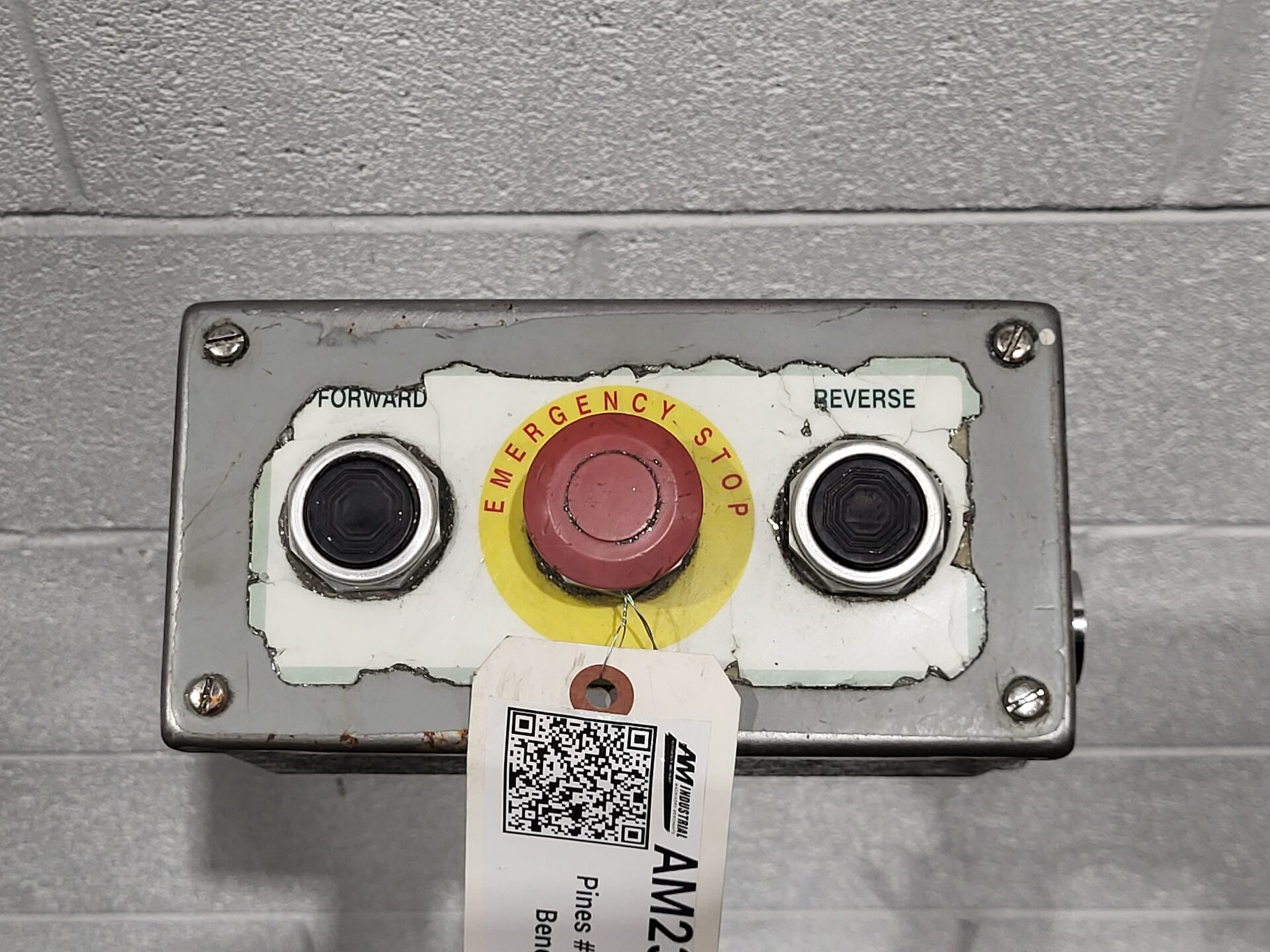

Remote cycle start stand
Adjustable stop system for length between bends
Parker Hydraulic Valves
Automatic lubrication

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
