3.5″ Coilco Extrupunch #12008 Tube Forming Machine - AM17674
Product Details
| Stock Number | AM17674 |
| Brand | CoilCo |
| Capacity | 3.50 inches |
Specifications

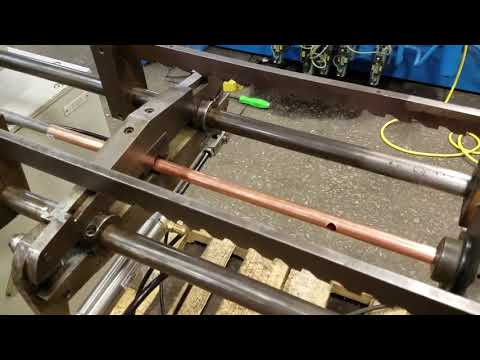

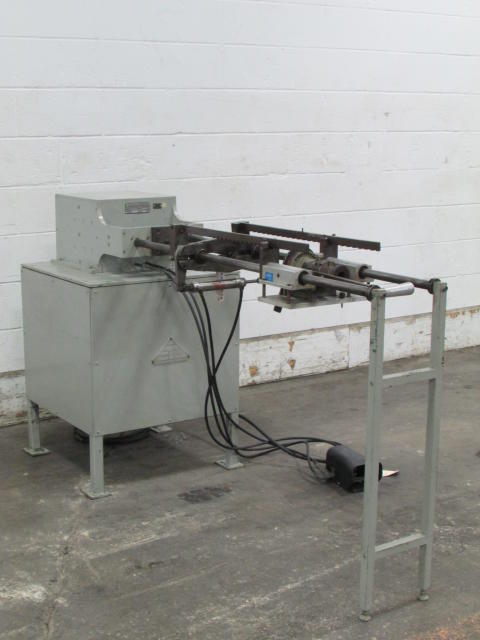

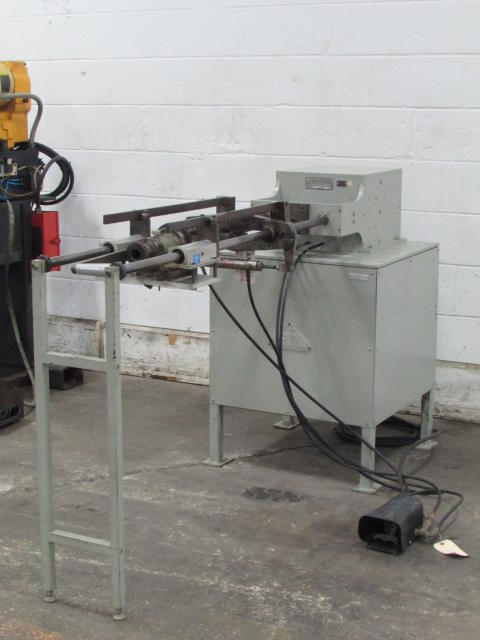

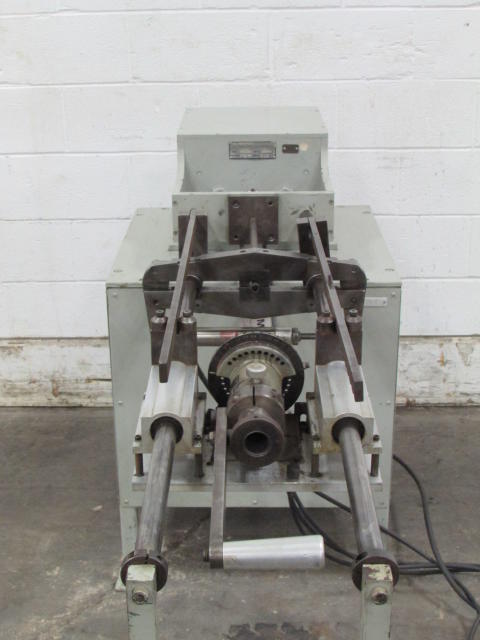

3-1/2″ Coilco Extrupunch #12008 Tube Forming Machine
- Tube diameter capacity: 0.625” – 3.5” OD
- Maximum wall thickness: 0.125”
- Minimum distance between whole collar edges: 0.25”
- Minimum distance between flat hole edges: 0.03125”
- Average collar height above surface: 0.10”
- Maximum holes in line is limited only by hole diameter, tube length and distance between holes
- Tube positioning carriage – Y axis and B axis positioning
Maintenance Instructions
- Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
- Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
- If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
- Confirm the emergency STOP buttons are working properly.
- If the machine is hydraulic confirm the pump and motor rotation is correct.
- Perform all necessary tooling adjustments before running a cycle.
- To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
