Home Benders BendPro Machines 3.5″ Eagle EPT-90 CNC Tube Bender

3.5″ Eagle EPT-90 CNC Tube Bender - AM22416

Product Details

Stock Number	AM22416
Brand	Eagle
Capacity	3.50 inches

Specifications

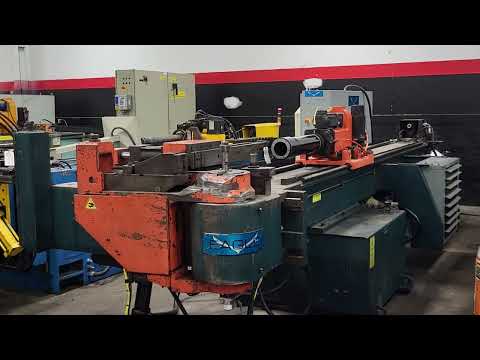

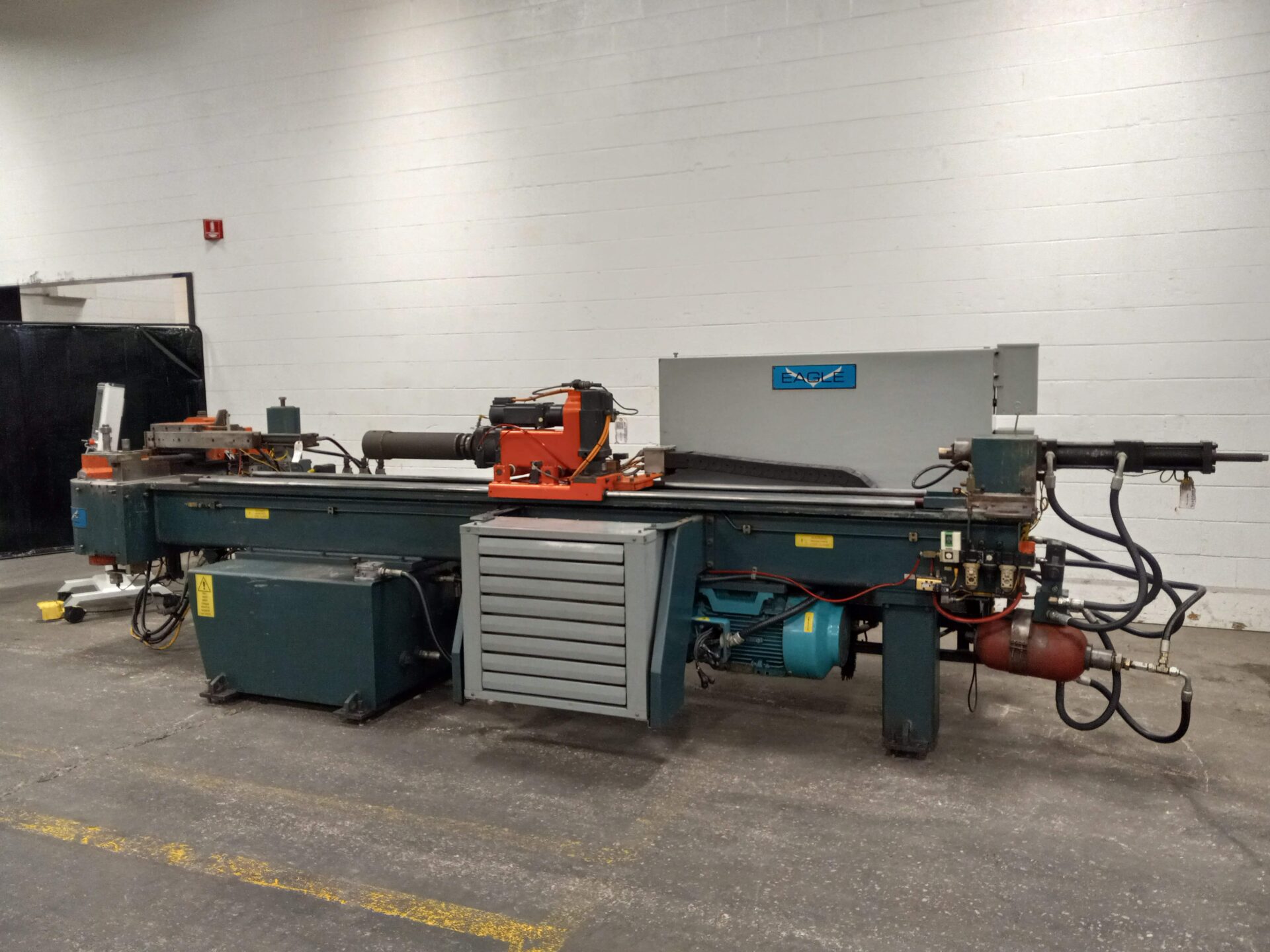

3.5″ Eagle EPT-90 CNC Tube Bender

Eagle 3-Axis CNC horizontal mandrel type tube bending machine recontrolled
Model: EPT-90

Specifications:

Maximum Tube Diameter: 3-1/2” OD x .120″ WT
Minimum Tube Diameter: .750″ OD (approx.)

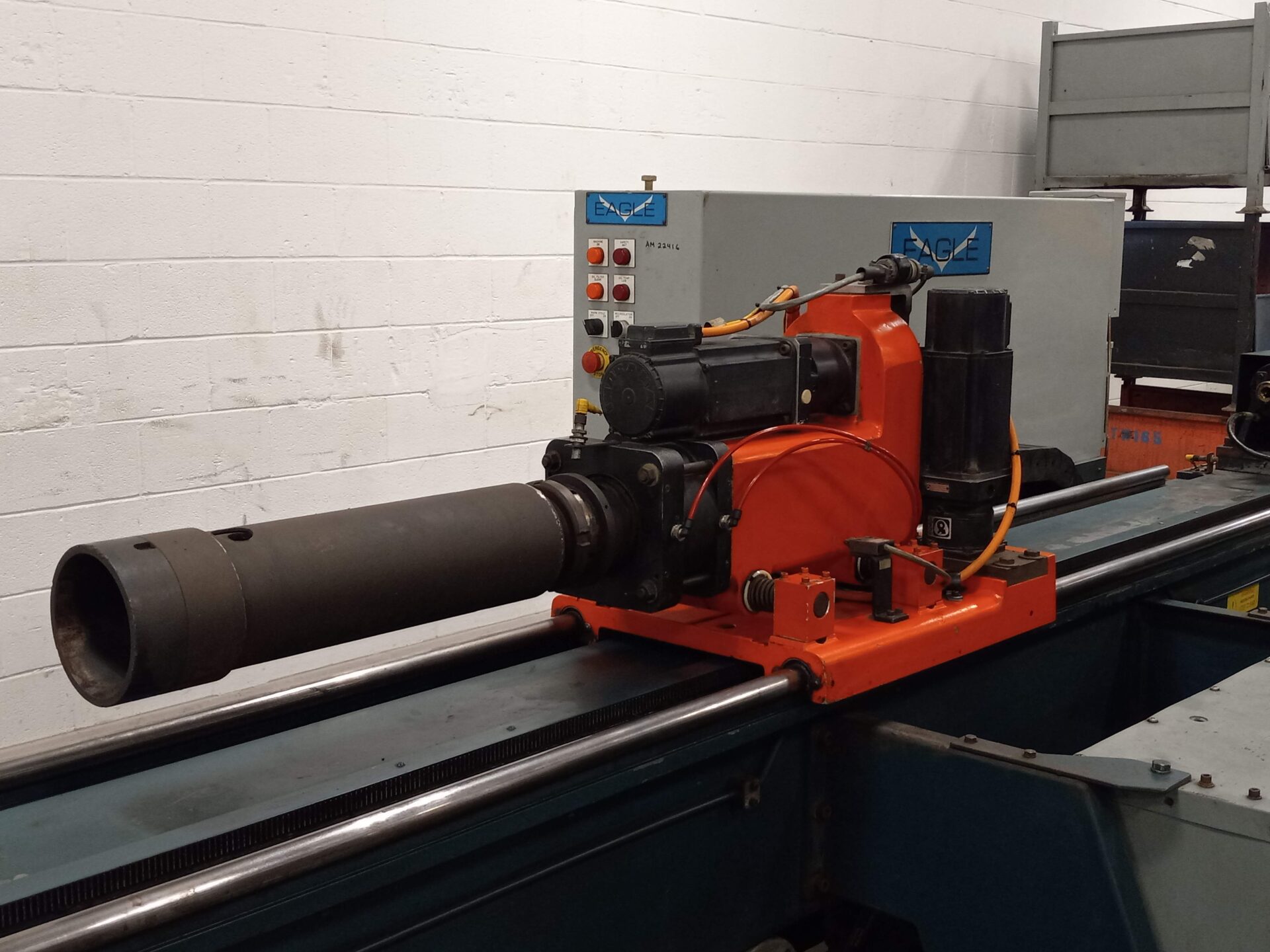

Maximum Tube over mandrel:
120″ end-chucked
168″ through carriage
Maximum Centerline Radius: 13″
Maximum bending rotation: 180° + springback
Bending rotation: Counter-clockwise (left-hand)

Includes:

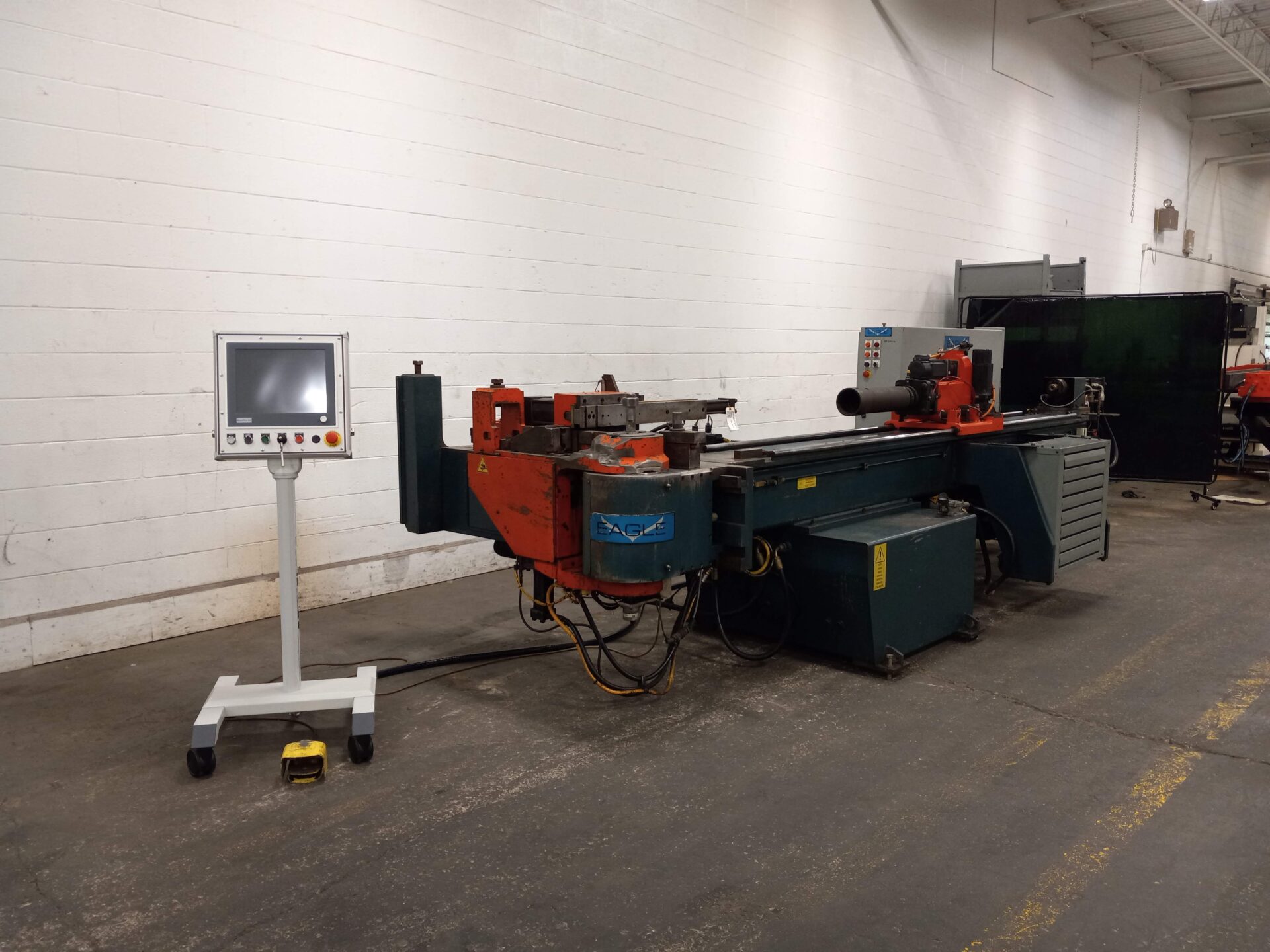

New BendPro control
New Hydraulic valves
New Rexroth Servo drives
Rexroth hydraulic bend valve
New Encoder for accurate degree of bend
Drop away type clamp die
Hydraulic pressure die assist
Automatic lubrication system
Overhead Tie-bar mounts
480 Volt
60 Hz
3 Phase Electrics

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.

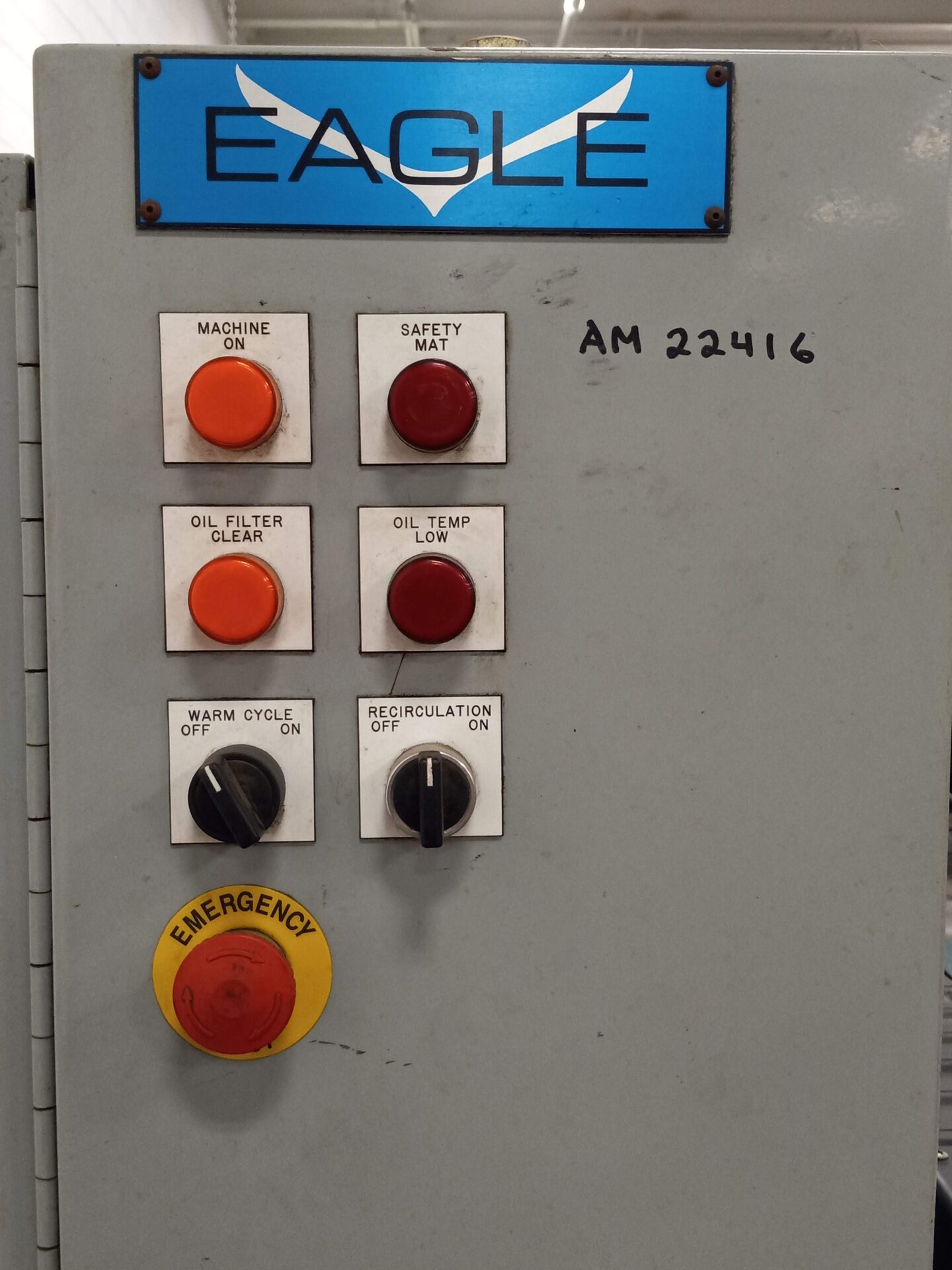

Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
