Home End Forming CNC Tube End Formers/Sizers 3.5″ Addison McKee FM70 RFGT Digiview CNC End Former

3.5″ Addison McKee FM70 RFGT Digiview CNC End Former - AM23491

Product Details

Stock Number	AM23491
Brand	Addison McKee
Capacity	3.50 inches

Specifications

3″ Addison McKee FM70 RFGT Digiview CNC End Former

Addison McKee CNC Tube End Forming & Flaring Machine
Used Model: FM-70 RFGT Digiview
Serial: J74359

Capabilities:

Minimum Tube Diameter: 1″ (approx.)
Maximum Tube Diameter: 3″ OD

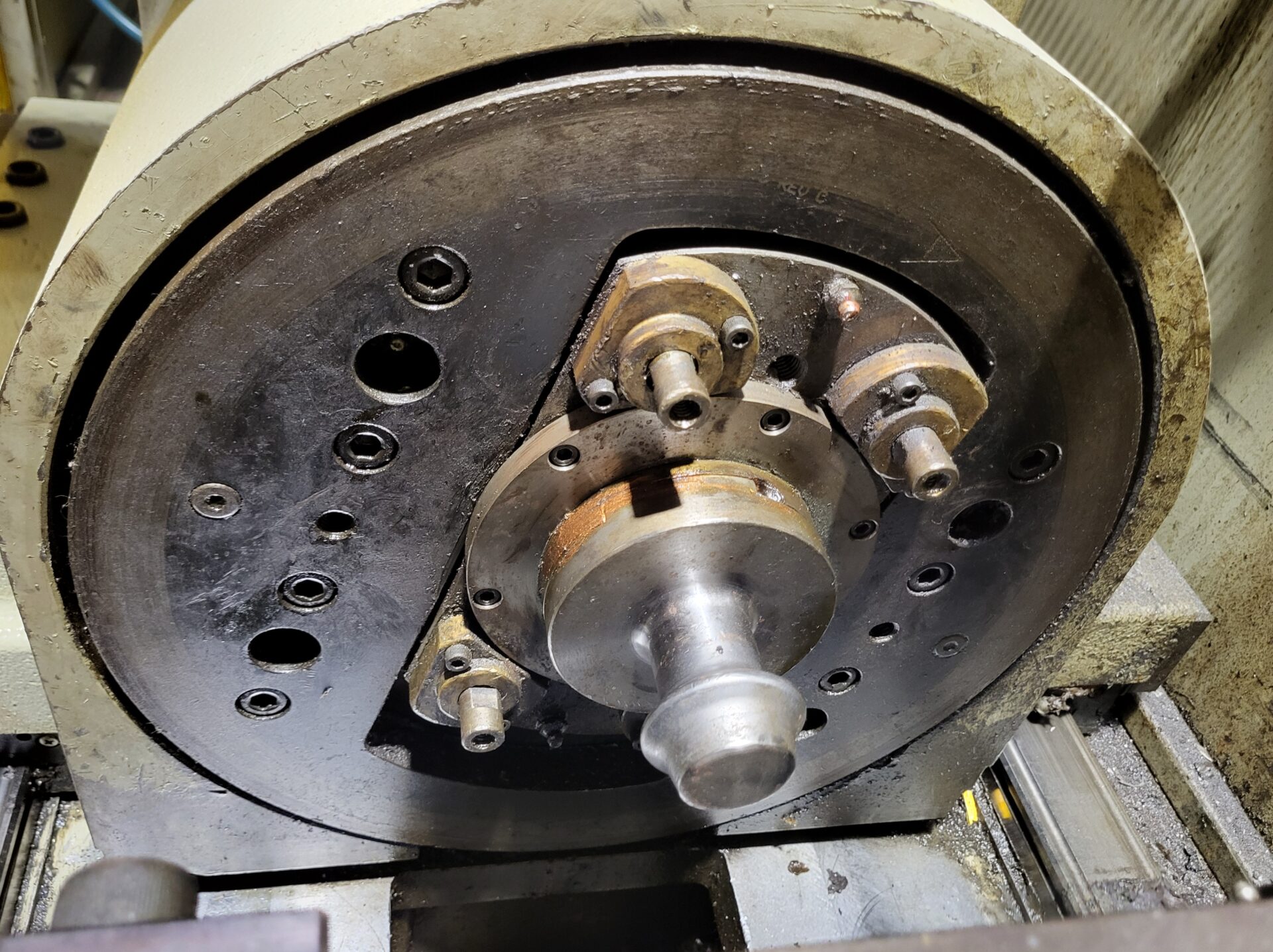

Rotating head with hydraulic out feed cylinder to feed the tool out into the tube creating the desired bead / flare / etc. while the workpiece is clamped in a hydraulic vise
High production beading
Flaring and Tube Trimming
Expanding & Ball Forming
Flanging & Parting

Includes:

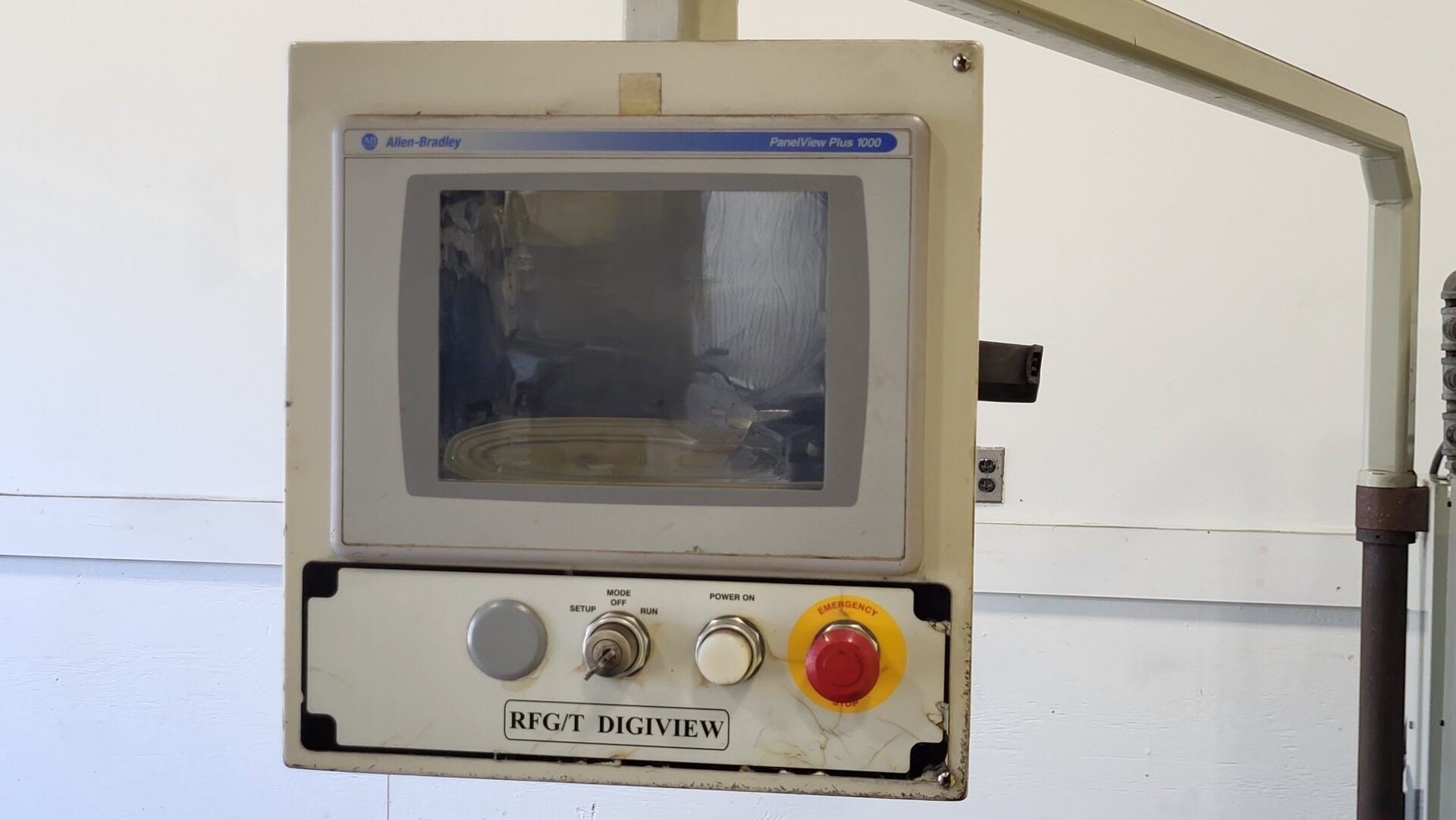

Touchscreen Machine Mounted Operator Controls
Servo head travel
Servo outfeed on spindle for accurate forming

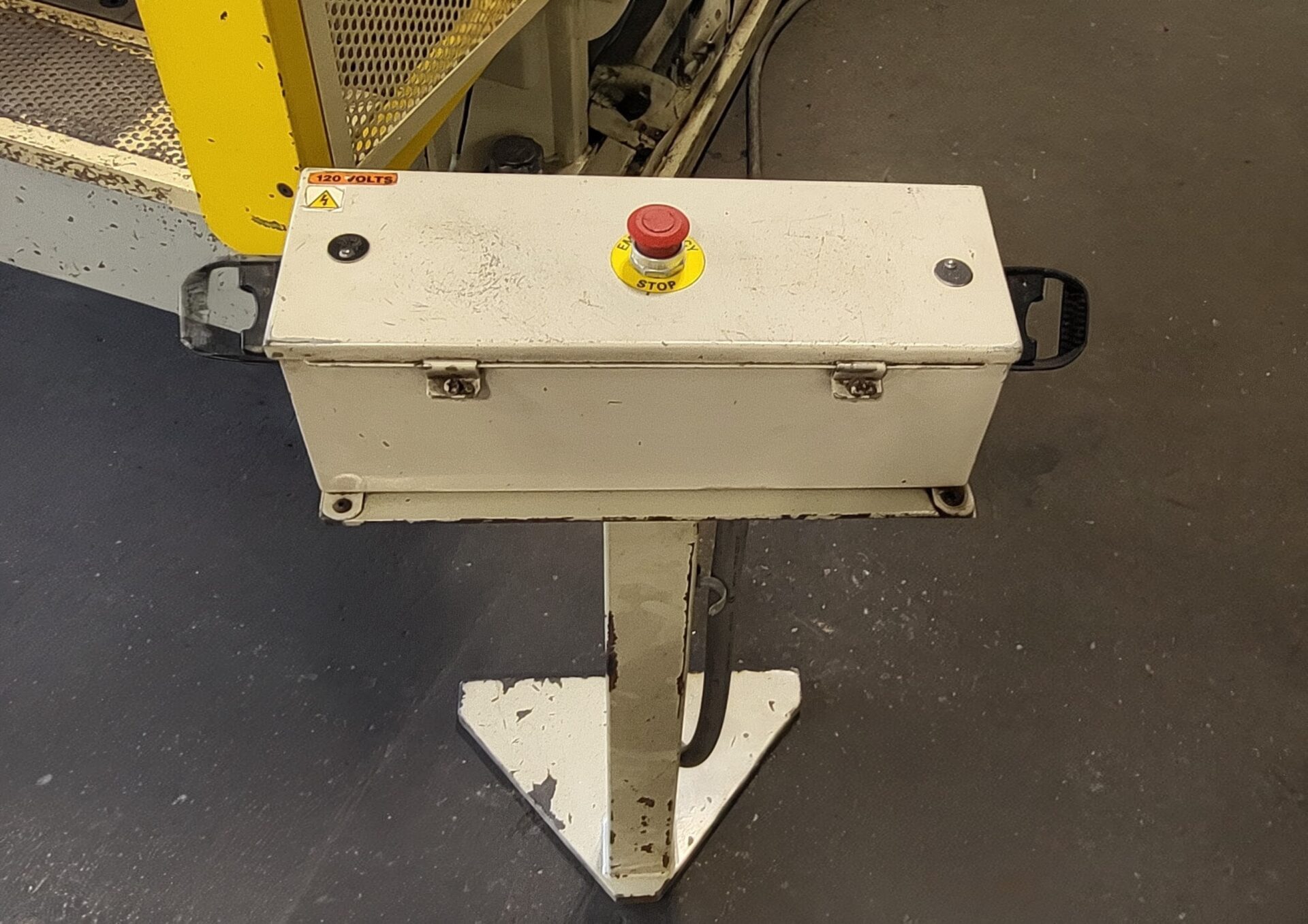

Two-hand cycle start pedestal
Allen Bradley Electrics
Rexroth Servo valves
Fully integrated hydraulics and valving
480 Volt
60 Hz
3 phase electrics
Footprint: 11′ L x 3′ W x 7′ H

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
