3″ GWS T6 CNC End Former - AM11647

Product Details

Stock Number	AM11647
Brand	GWS
Capacity	3.00 inches

Specifications

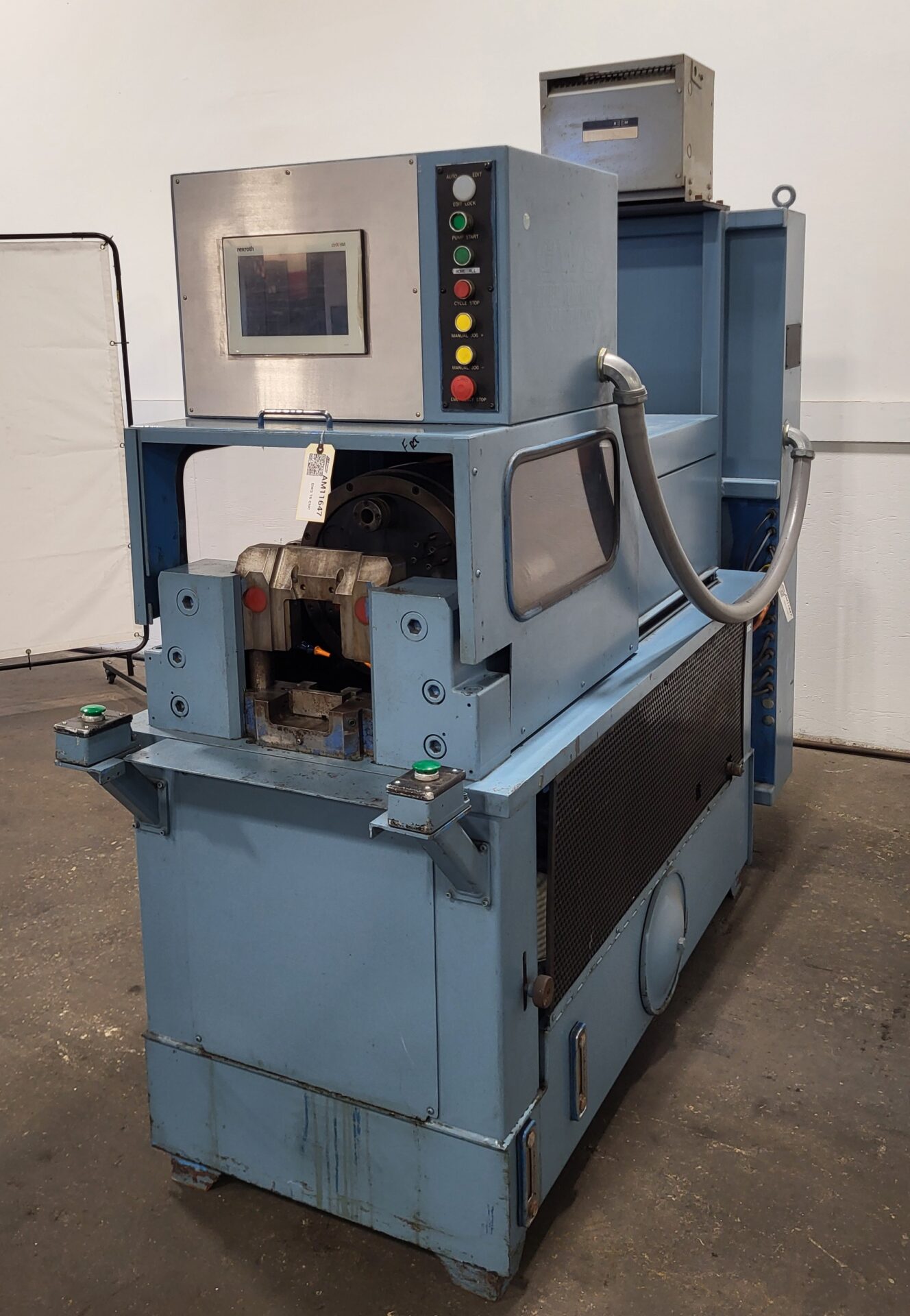

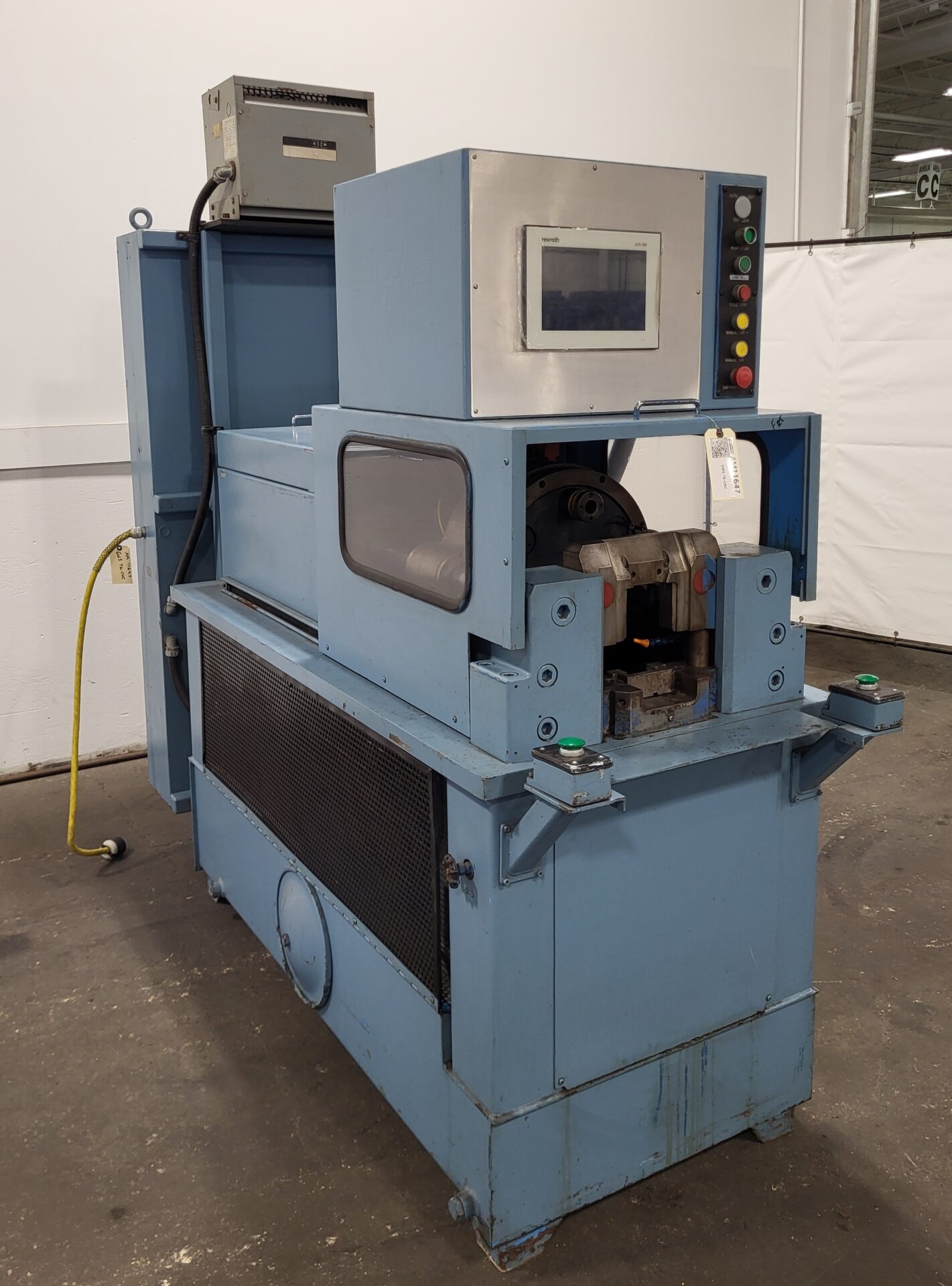

3″ GWS T6 CNC End Former

GWS 6-Hit CNC Vise and Ram tube end forming machine
Used Model: T6-CNC
Serial: KJAO61TU

Capabilities include:

Minimum Capacity: .125″
Maximum Capacity: 3″
Vise & Ram forming via 1-6 hit forming cycle
Expanding & Reducing
Flaring
Custom forming

Includes:

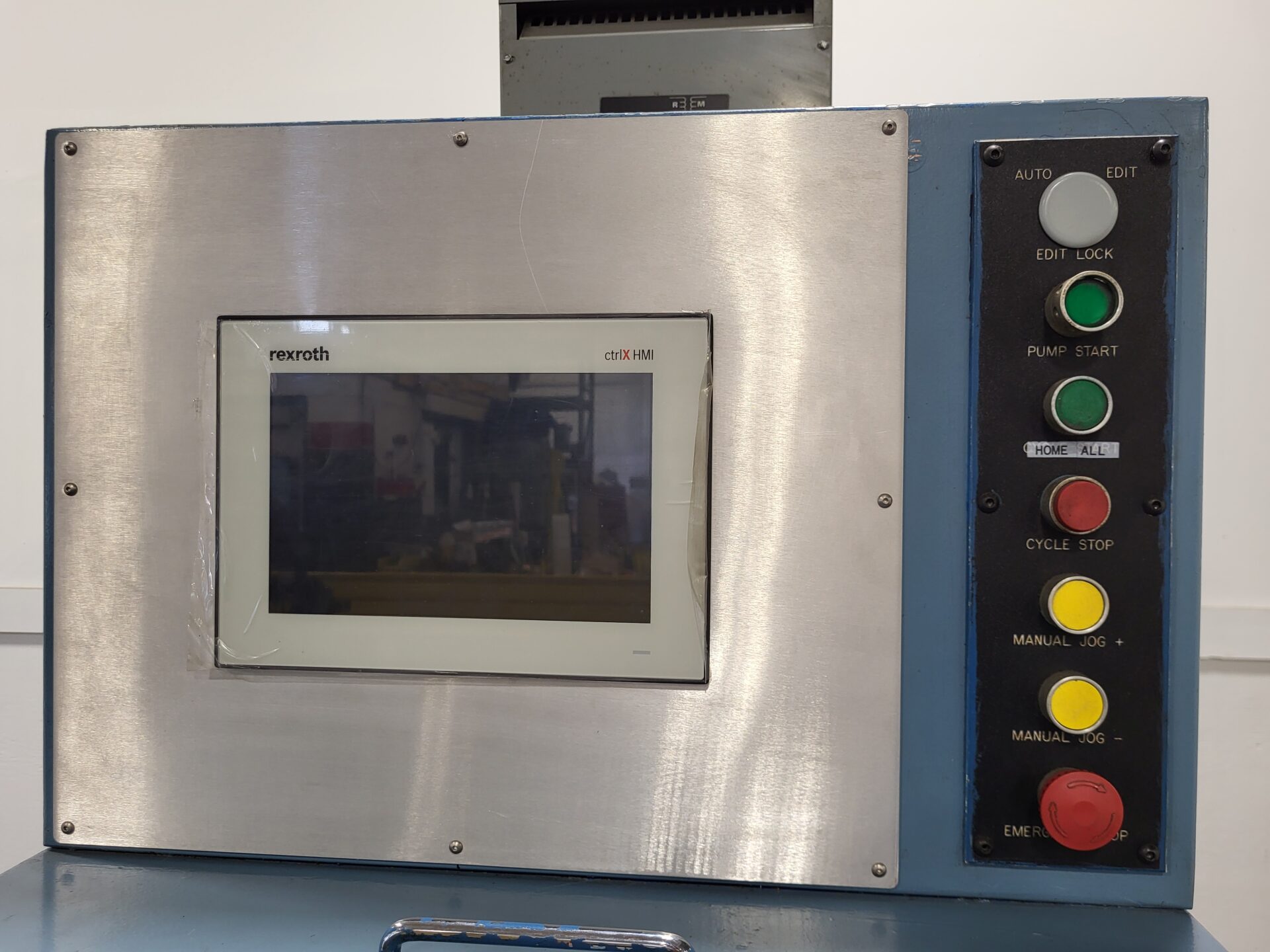

NEW Touch screen control system for part setup and storage
Rexroth control system
Servo controlled ram forming for variable stroke and speed
Unlimited part program storage
2-Hand control for typical cycle start operation
Vickers hydraulic valves

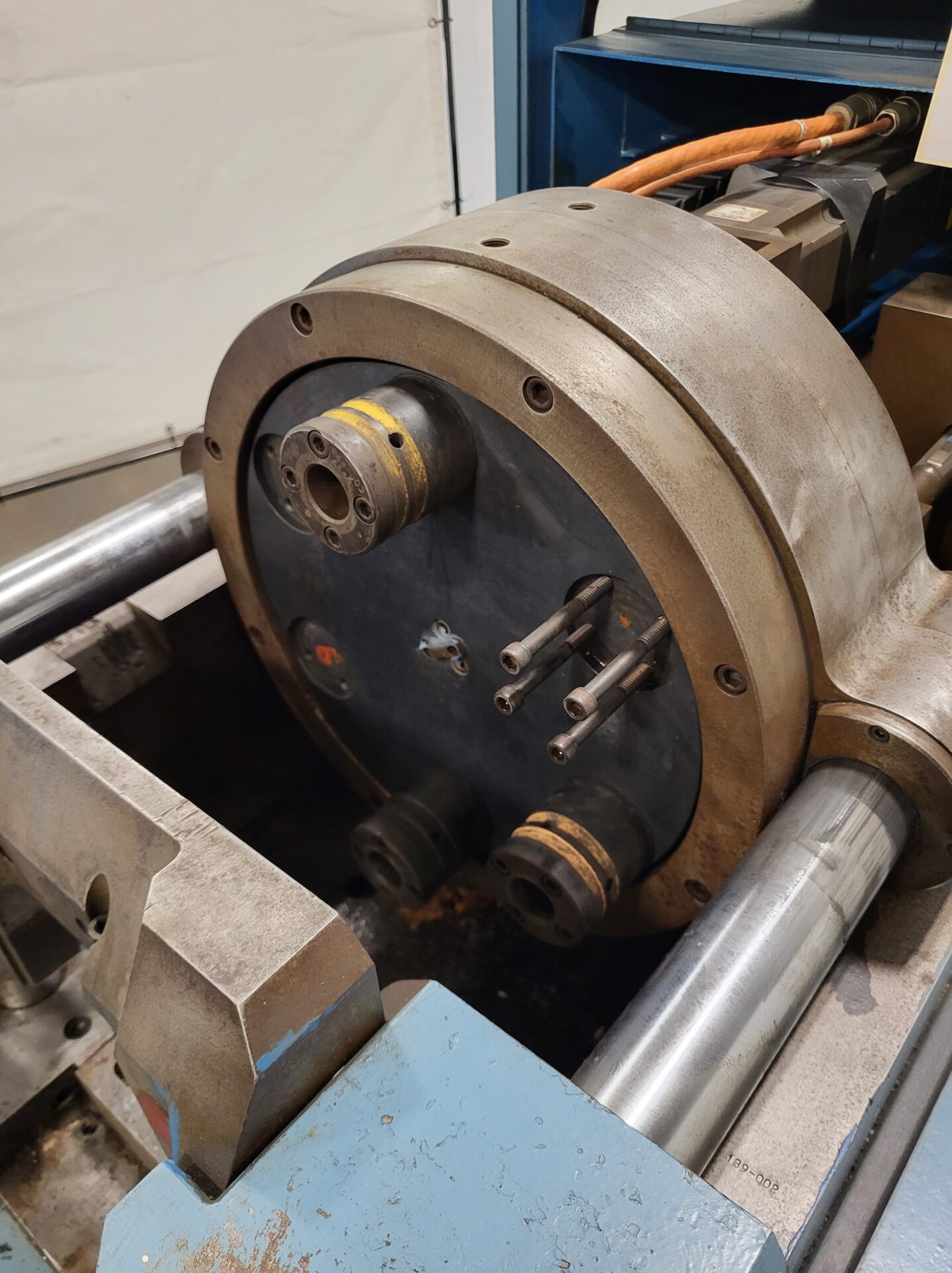

Used tooling set – shown in attached photo
230/460 volt
3 phase electrics
Discounted Price, As Pictured, Cycled Under Power, Fob Cleveland, OHIO

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
