3.150″ Horn Machine Tools CNC80TMRE CNC Tube Bender - AM20739

Product Details

Stock Number	AM20739
Brand	Horn Machine Tools
Capacity	3.15 inches

Specifications

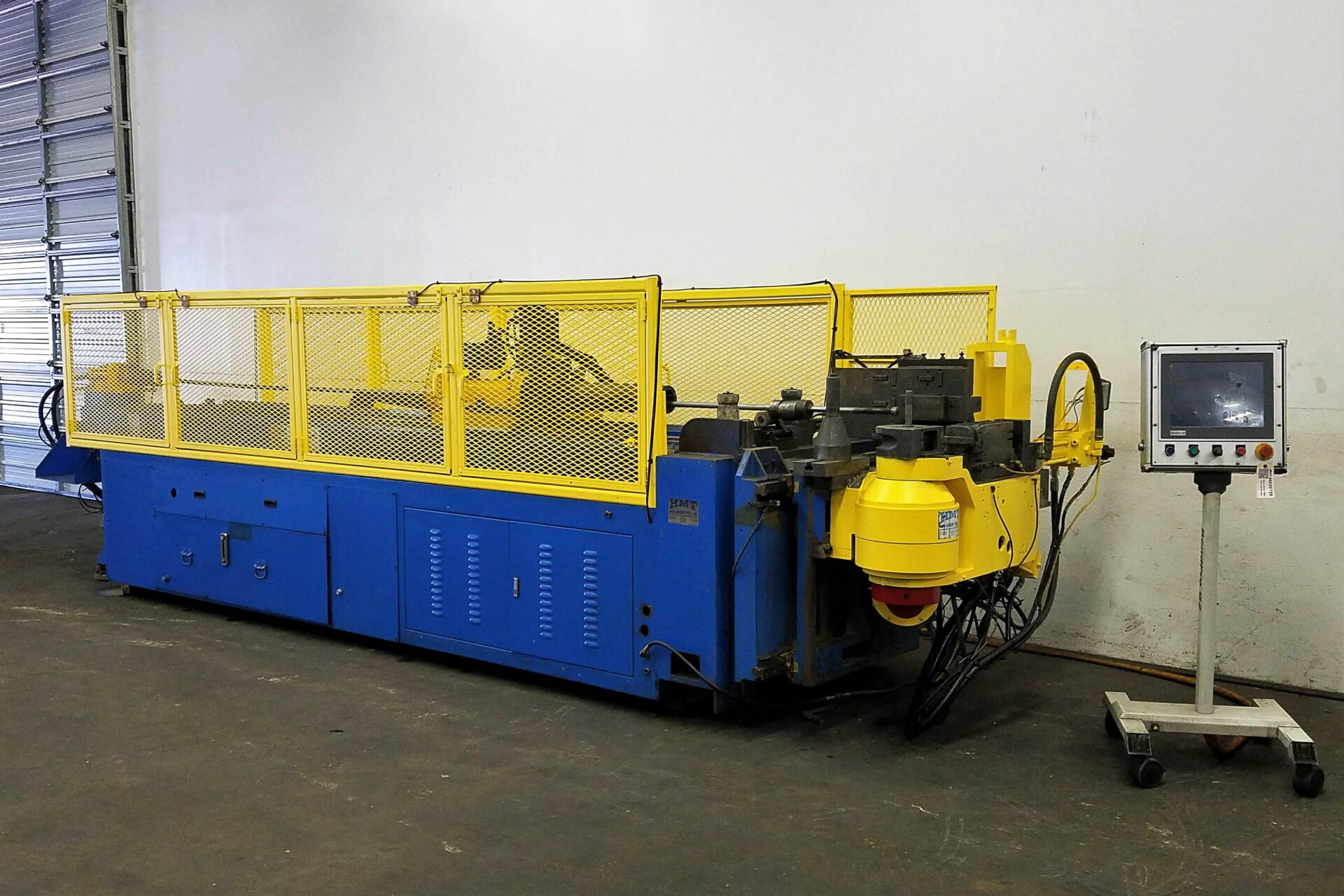

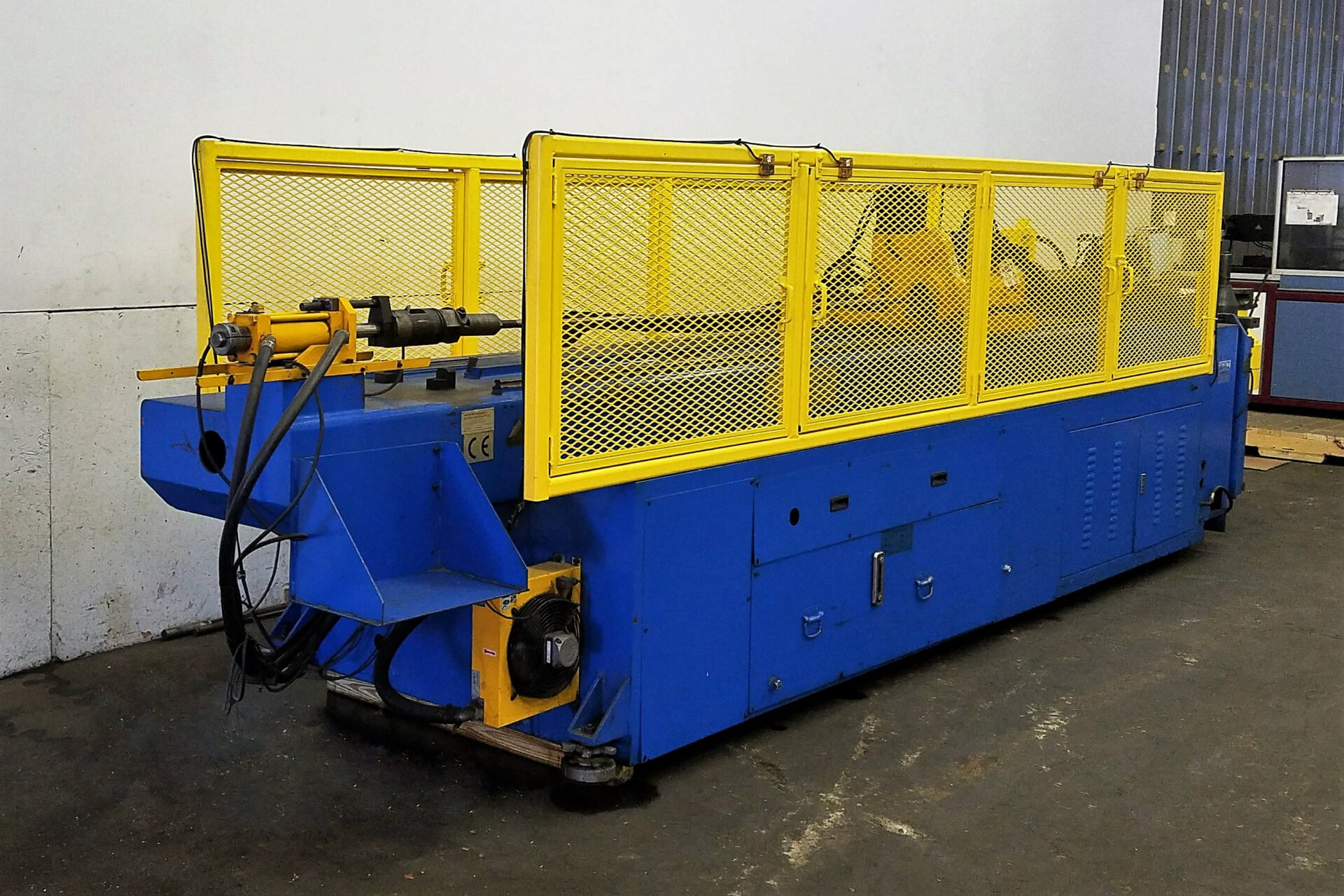

3.150″ Horn Machine Tools CNC80TMRE CNC Tube Bender

Horn Machine Tools CNC 5-Axis Heavy Duty Hybrid Boost Type Tube Bending Machine
Model: CNC 80 TMRE-RBE

Capacities:

Maximum Bending Capacity (per mfg. literature):
Round tube (mild steel): 3.150″ OD x .098″ WT
Round tube (non-ferrous): 3.150″ OD x .177″ WT
Round tube (stainless): 3.150″ OD x .063″ WT
Square tube (mild steel): 2.362″ OD x 0.98″ WT
Solid bar (mild steel): 1.378″
Maximum tube length over mandrel approx:
144″ End chucked
194″ Through carriage
Maximum degree of bend: 180° + Springback
Bending Rotation: Right-Hand (Clockwise)
3-Stack bending capability with cutoff option
Head shift for Z & X movement to allow for multi-stack tooling shift

Includes:

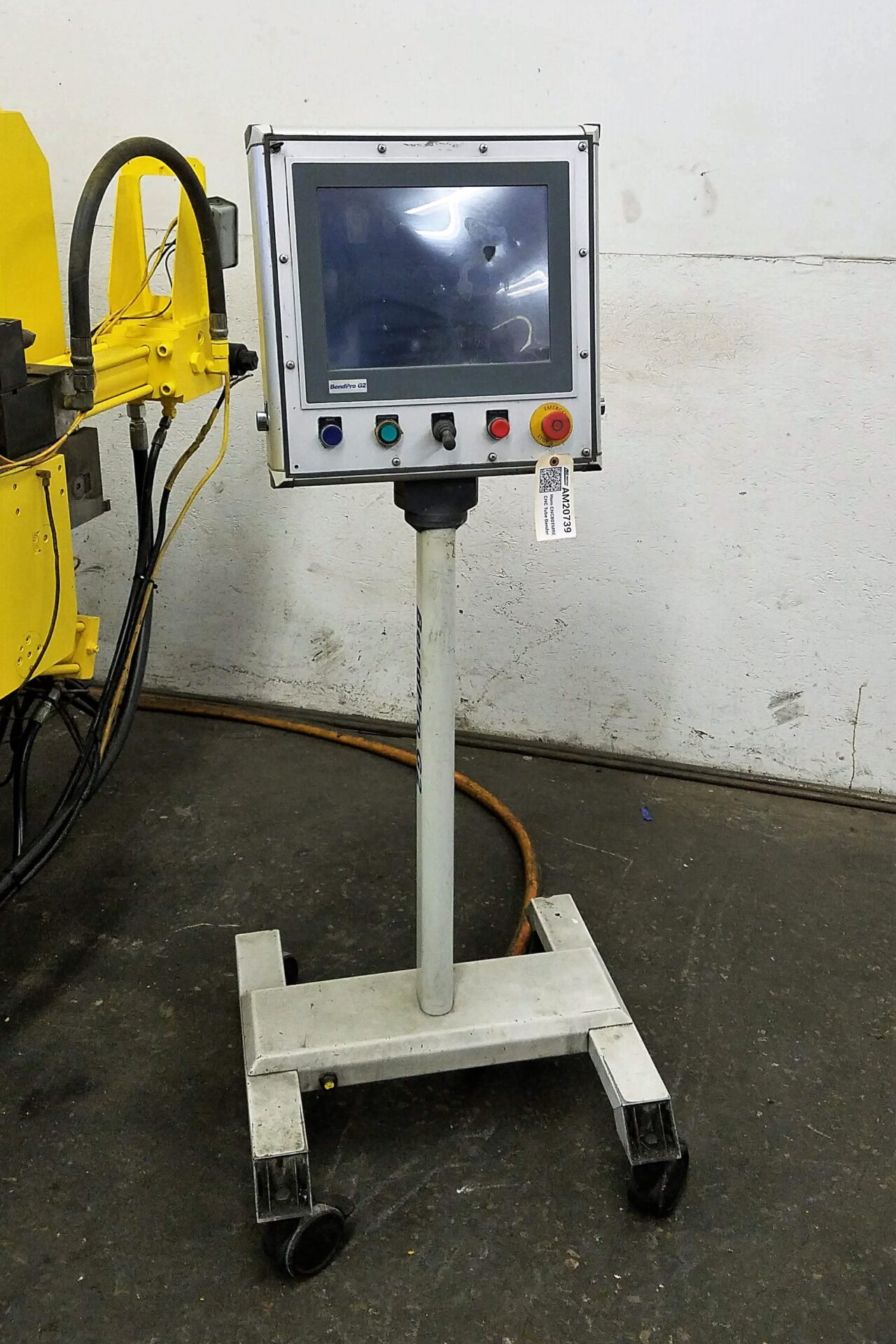

BendPro G2 CNC Operator Control – Touchscreen – Windows Based
Electric servo driven collet (B-axis)

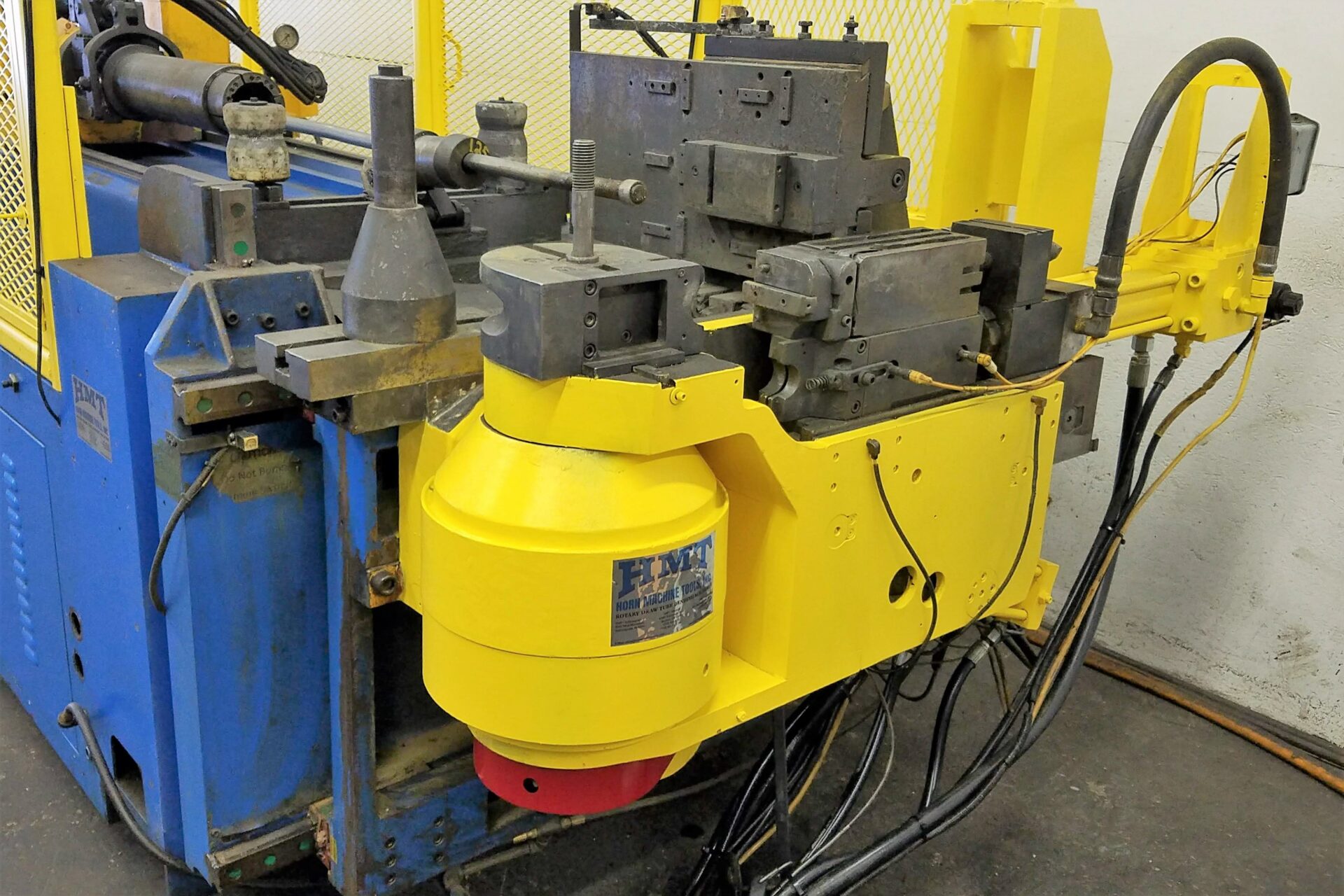

Electric servo driven bend-arm (C-axis)

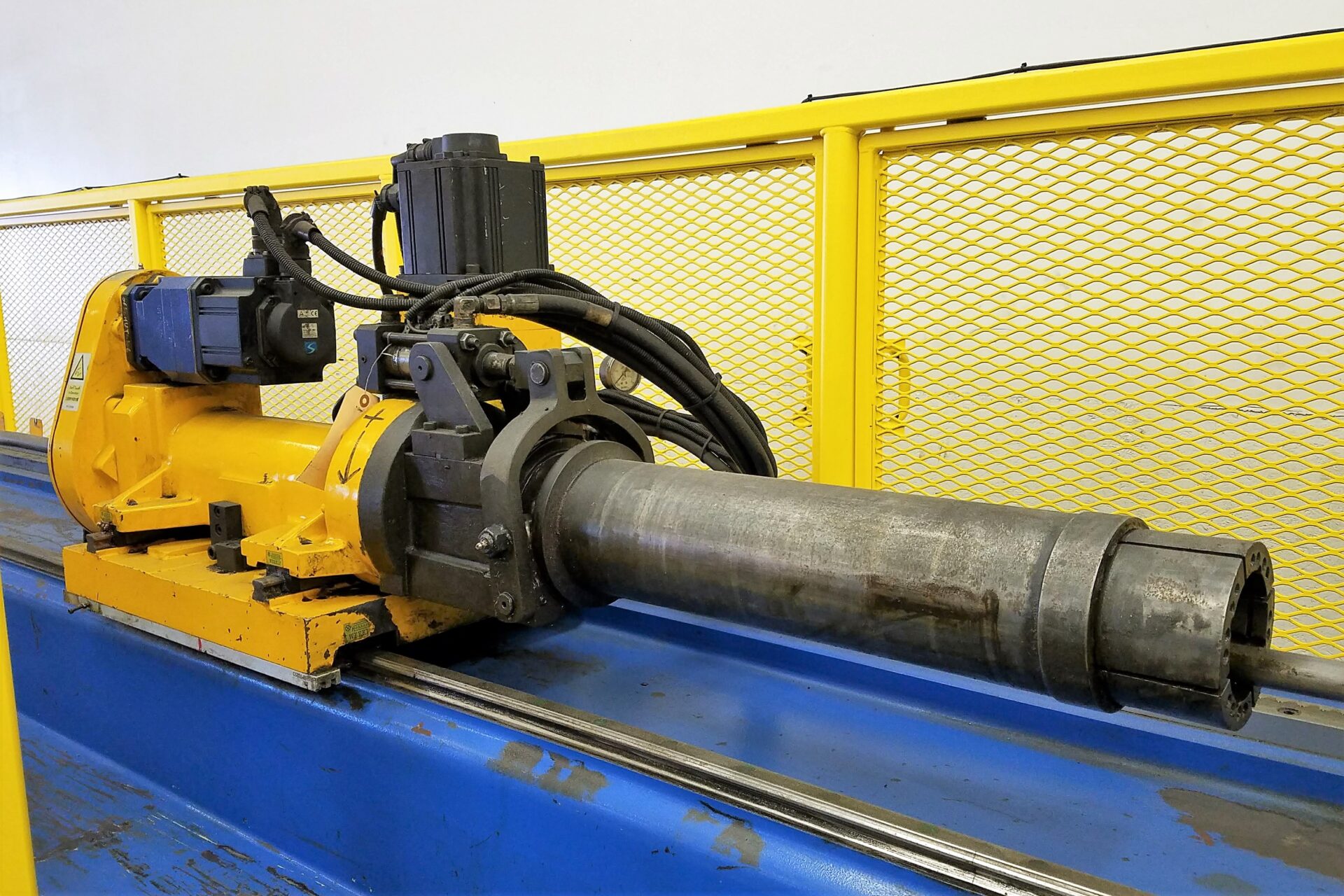

Electric servo driven carriage (Y-axis)
Boost carriage for tight radius bending
Roll capability for large radius bending
Pressure die assist
Drop away clamp die
Mandrel extractor
Automatic mandrel lubrication
Automatic tube support
Overhead tie bar

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
