Home Benders CNC Tube/Pipe Benders 8.625″ Schwarze Wirtz Robitec WE220 CNC Tube Bender

8.625″ Schwarze Wirtz Robitec WE220 CNC Tube Bender - AM17371

Product Details

Stock Number	AM17371
Brand	Schwarze Wirtz Robitec
Capacity	8.63 inches

Specifications

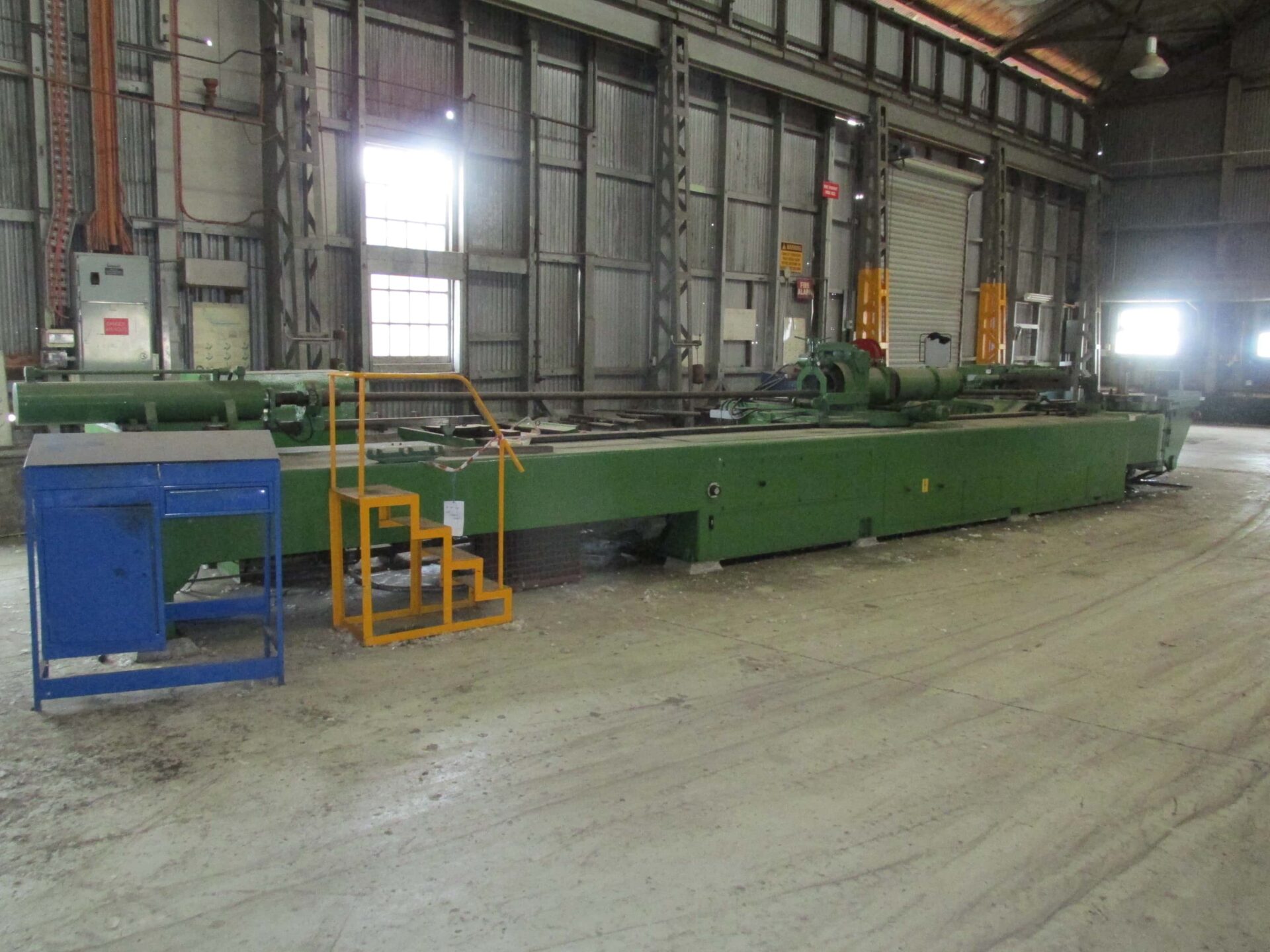

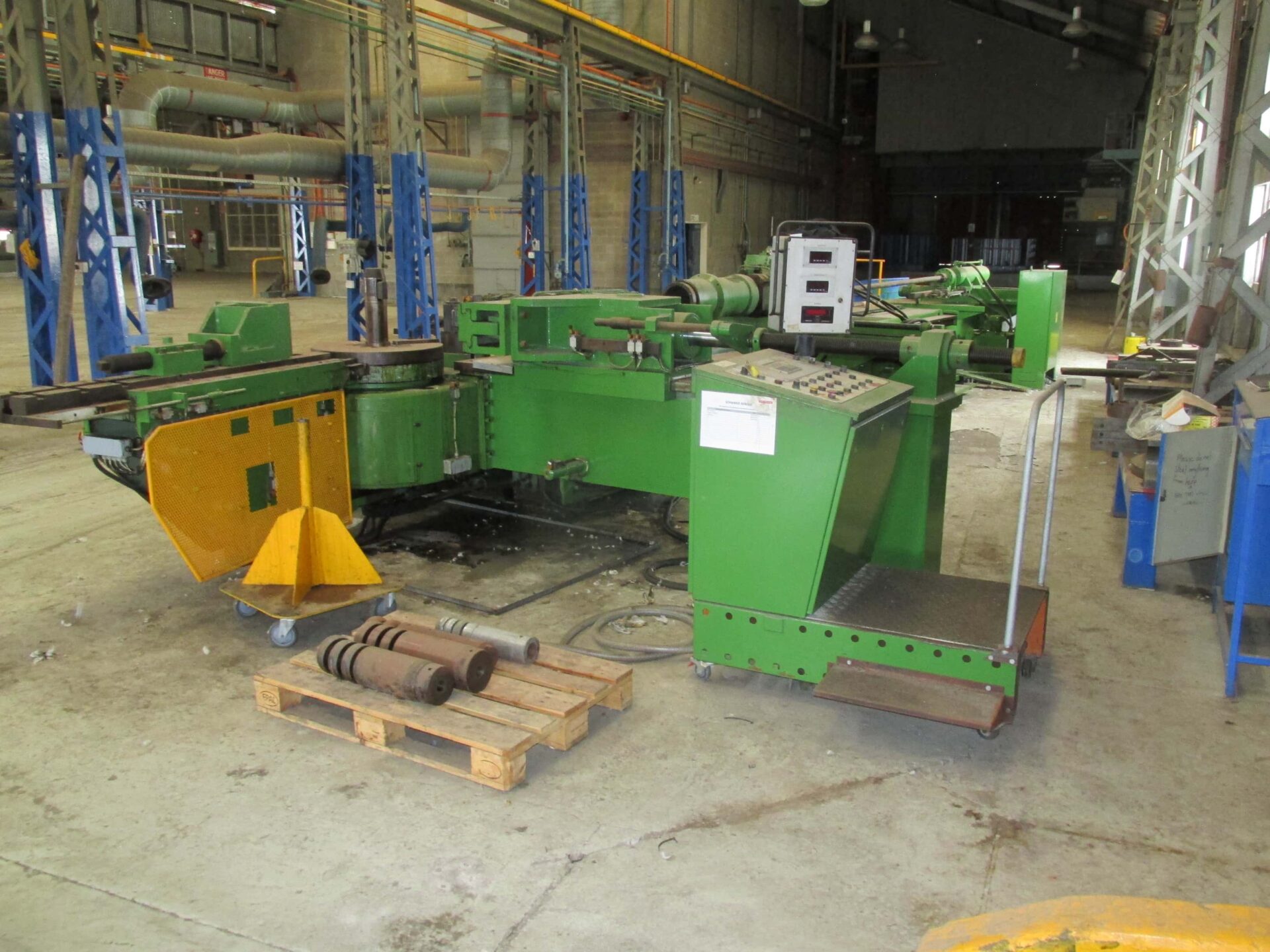

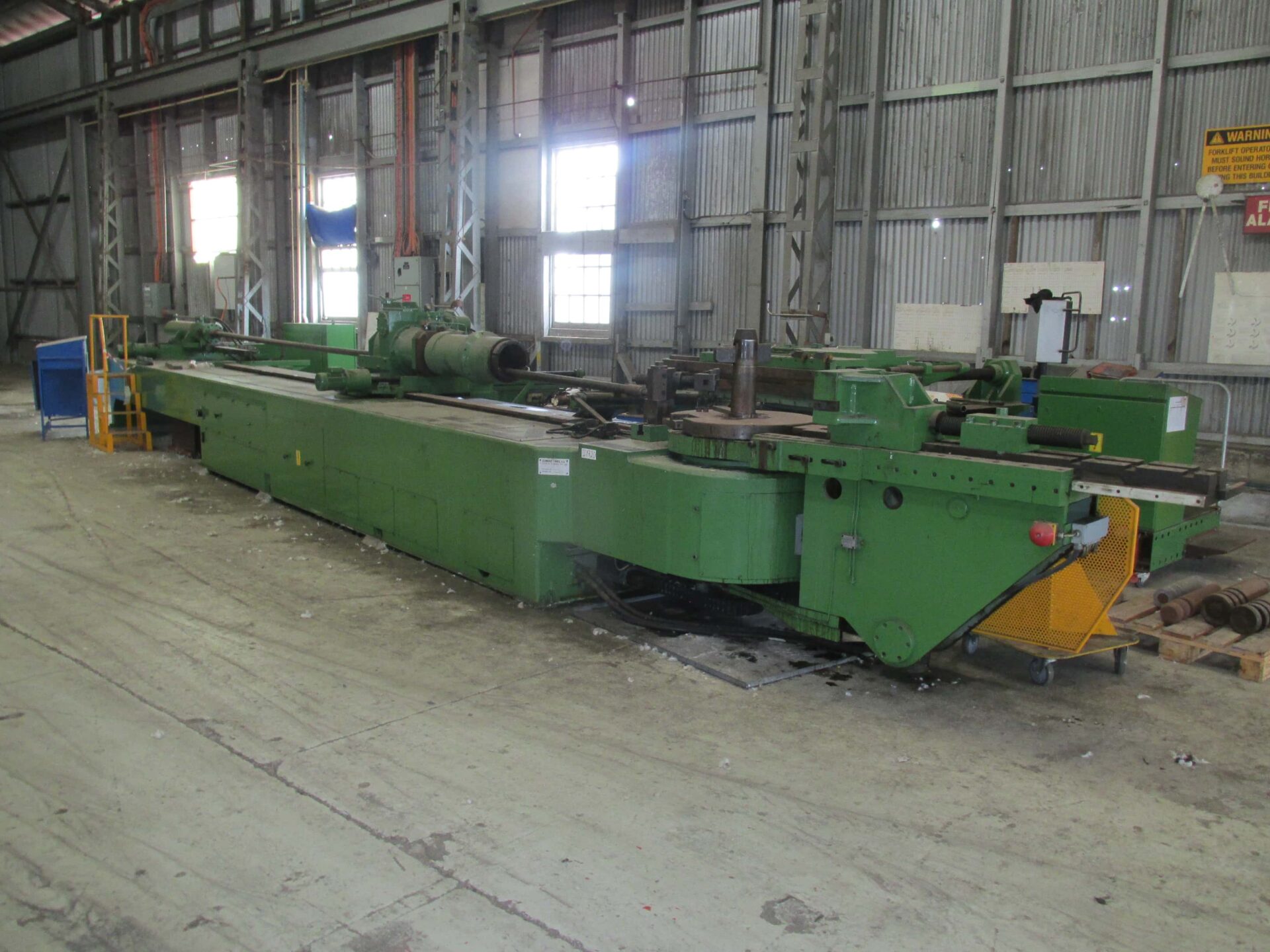

8.625″ Schwarze Wirtz Robitec WE220 CNC Tube Bender

Schwarze Wirtz Semi-Automatic Mandrel Type Heavy Duty Shipyard Class Tube and Pipe Bender
Model: WE220

Capacities:

Minimum tube diameter: 1″ OD (approx.)
Maximum tube diameter: 8.625″ OD x .279″ wall (219.1mm x 7.1mm)
Maximum tube length over mandrel: 236” (6000mm) (approx.)
Maximum centerline radius with carriage bending: 48″ (approx.)
Maximum centerline radius without carriage: 63″
Bending rotation: Right hand (clockwise)

Includes:

Heavy duty carriage for pipe positioning between bends
Hydraulic mandrel extractor
Hydraulic B-Axis Shift
Wiper die holder
Hydraulic pressure die assist
Hydraulic direct acting pressure die
Hydraulic collet closer

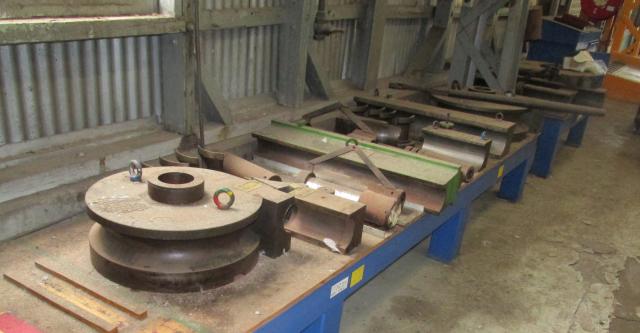

Assortment of tooling for pipe OD’s

Refurbishment Includes:

New BendPro G2V3 CNC Control – Windows Based
Premium prime and paint
New Rexroth Servo Drives
New Wiring
Rebuilt Hydraulic Cylinders
New Hydraulic Hoses
Rebuild / Replace Pump
Readjust / Remachine Head Slides and Gibs
480 Volt
60 Hz
3 phase electrics

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
