Home Benders CNC Tube/Pipe Benders 5″ Eagle EPT125 CNC Tube Bender

5″ Eagle EPT125 CNC Tube Bender - AM24551

Product Details

Stock Number	AM24551
Brand	Eagle
Capacity	5.00 inches

Specifications

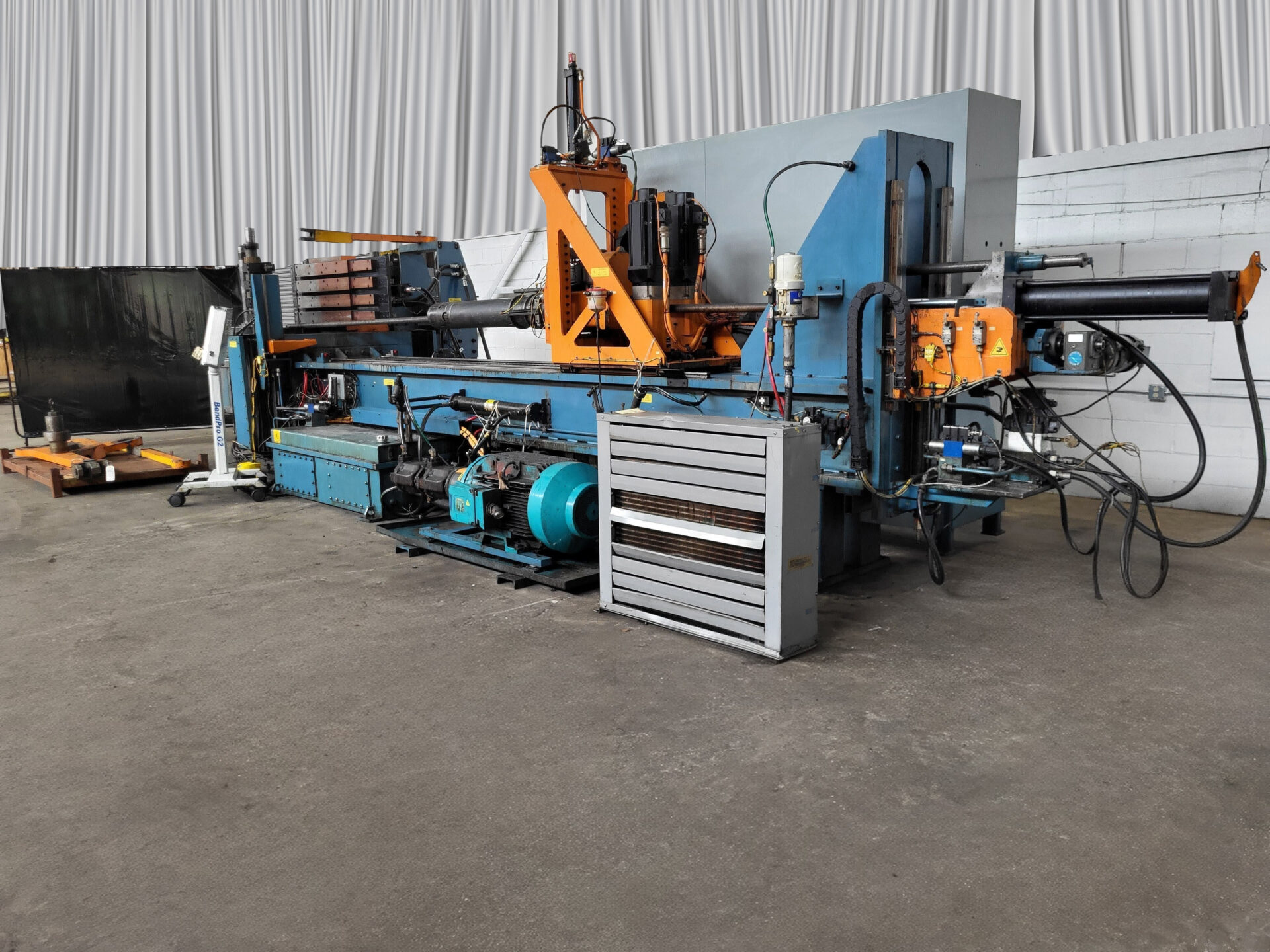

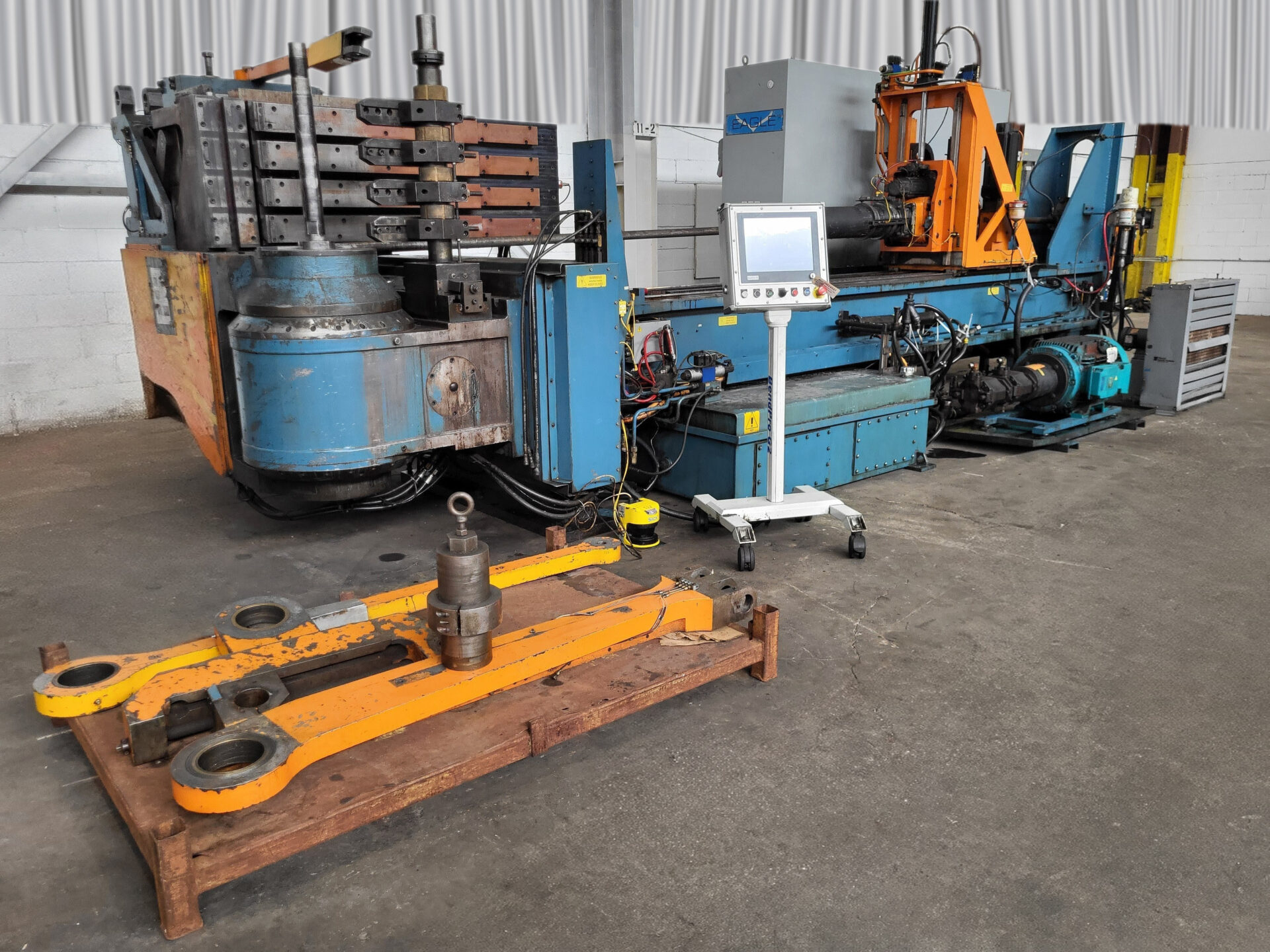

5″ Eagle EPT125 CNC Tube Bender

Eagle 7-Axis CNC Hybrid Mandrel Tube Bender
Used Model: EPT-125 XPE

Specifications:

Minimum tube diameter: 1″ (approx.)
Maximum tube diameter: 5″ (127mm) OD

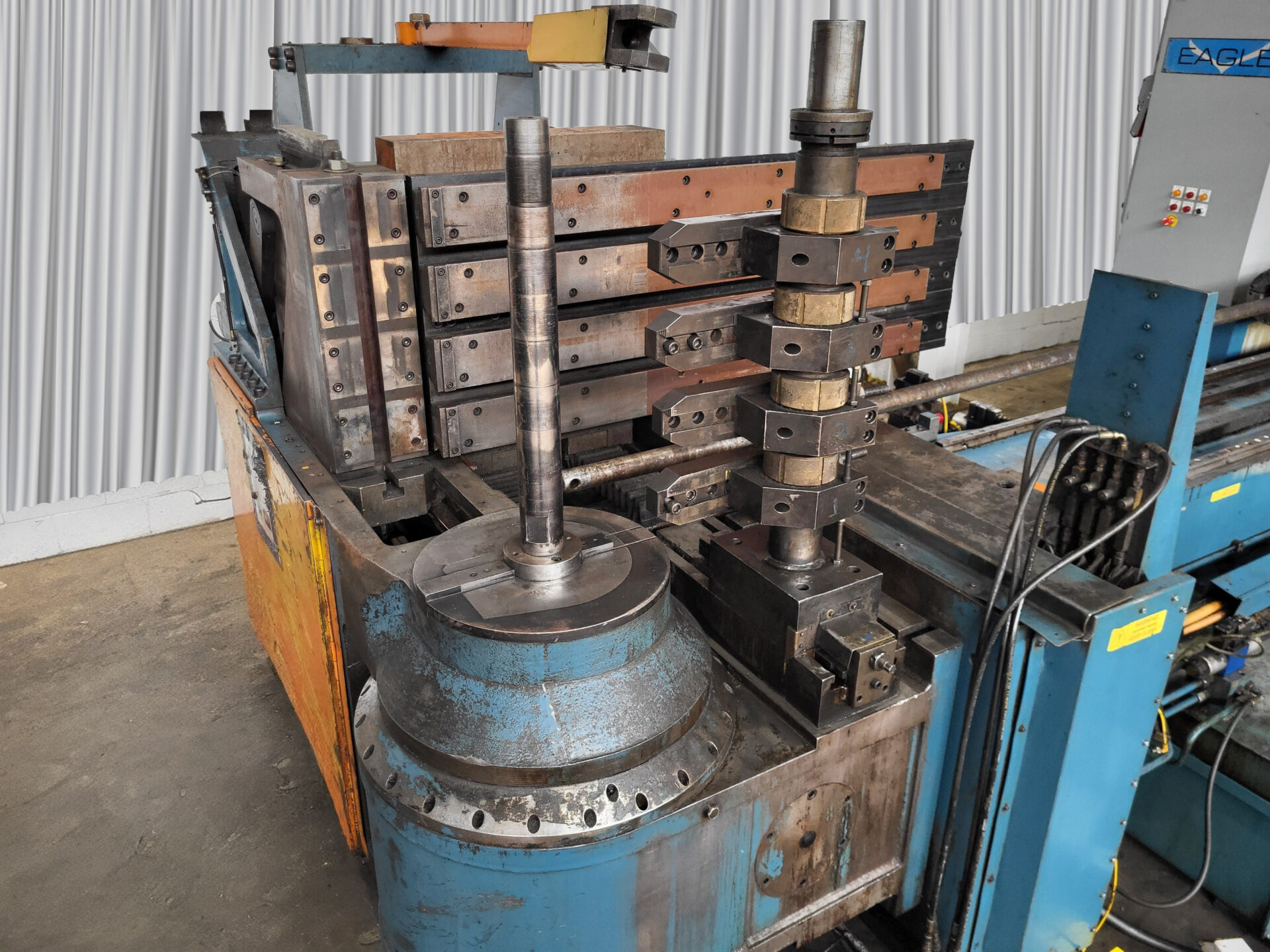

4-Stack tooling capacity (Servo-Hydraulic)
Maximum degree of bend: 180° + springback
Maximum length over mandrel: 120″ (approx.)
Bending rotation: Left-hand (Counter-clockwise)

Includes:

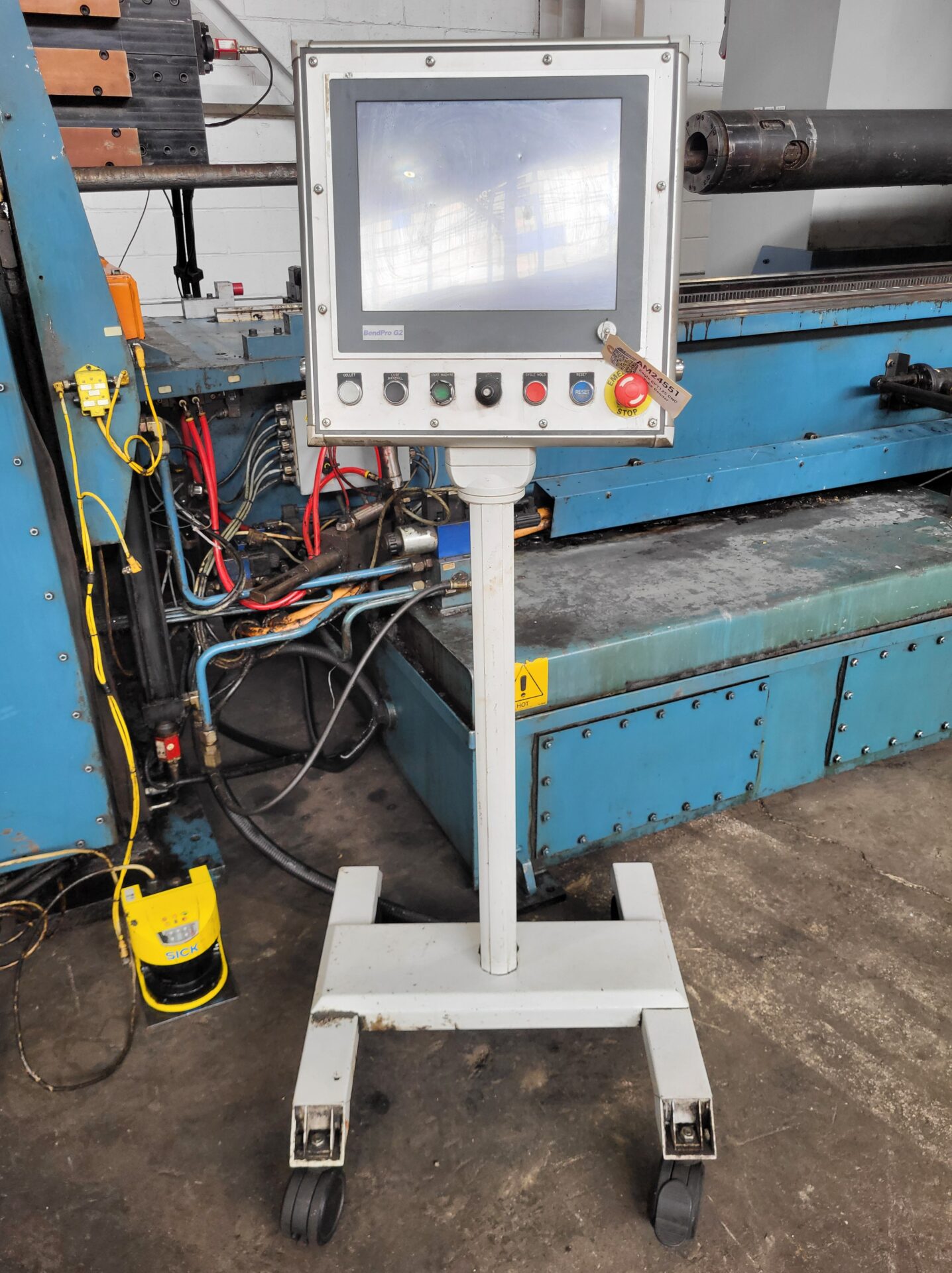

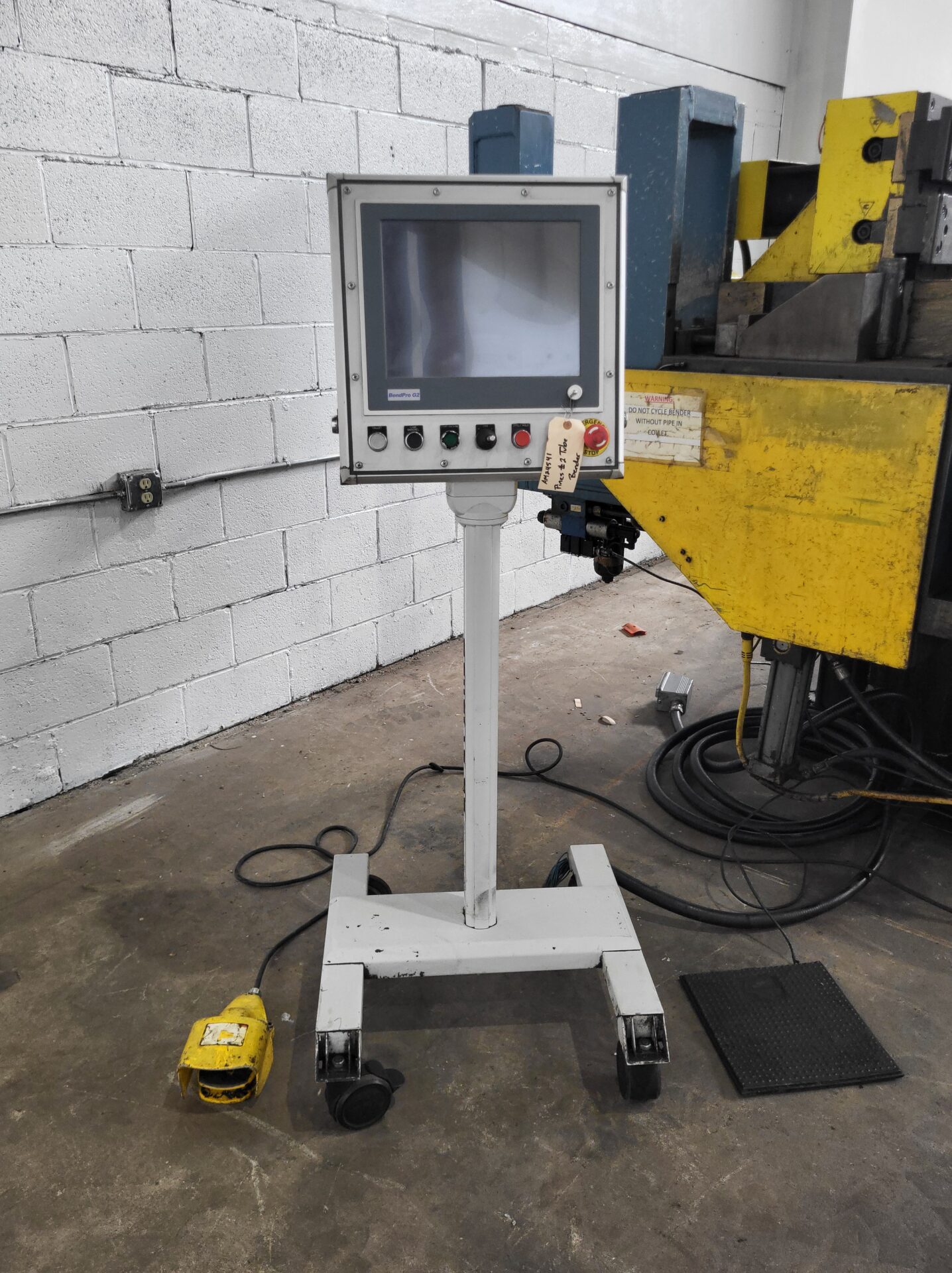

BendPro G2V2 CNC Controls
Electric Servo Driven Bend-Head
Electric Servo Boosted Carriage (tight radius bending)
Wiper die mounts
Hydraulic pressure die assist
Direct acting pressure die
Direct acting clamp die

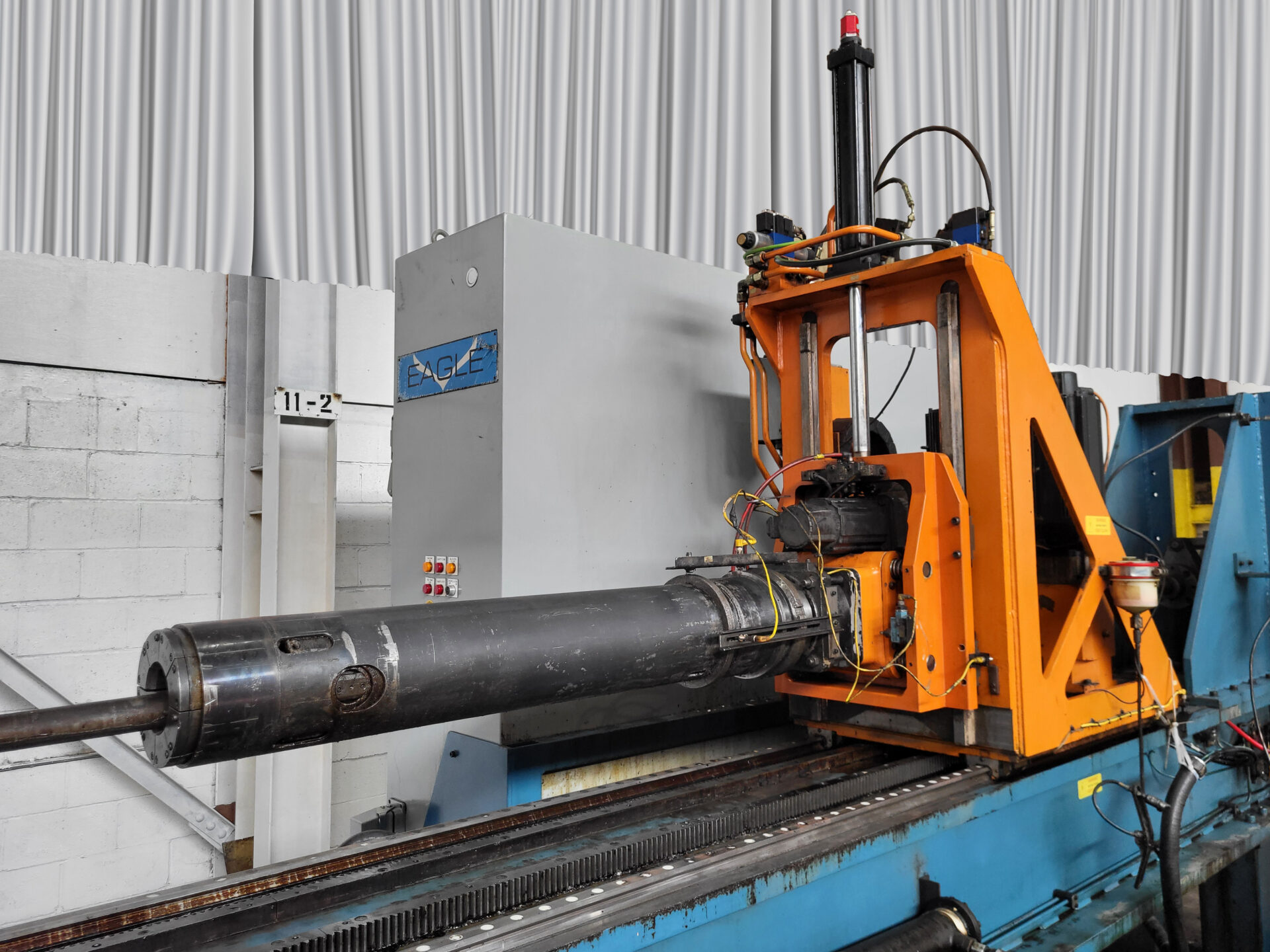

Hydraulic mandrel extractor
Pneumatic collet closer – OD type
Powered mandrel tangent adjustment
Fan-type hydraulic oil cooler
Automatic lubrication system

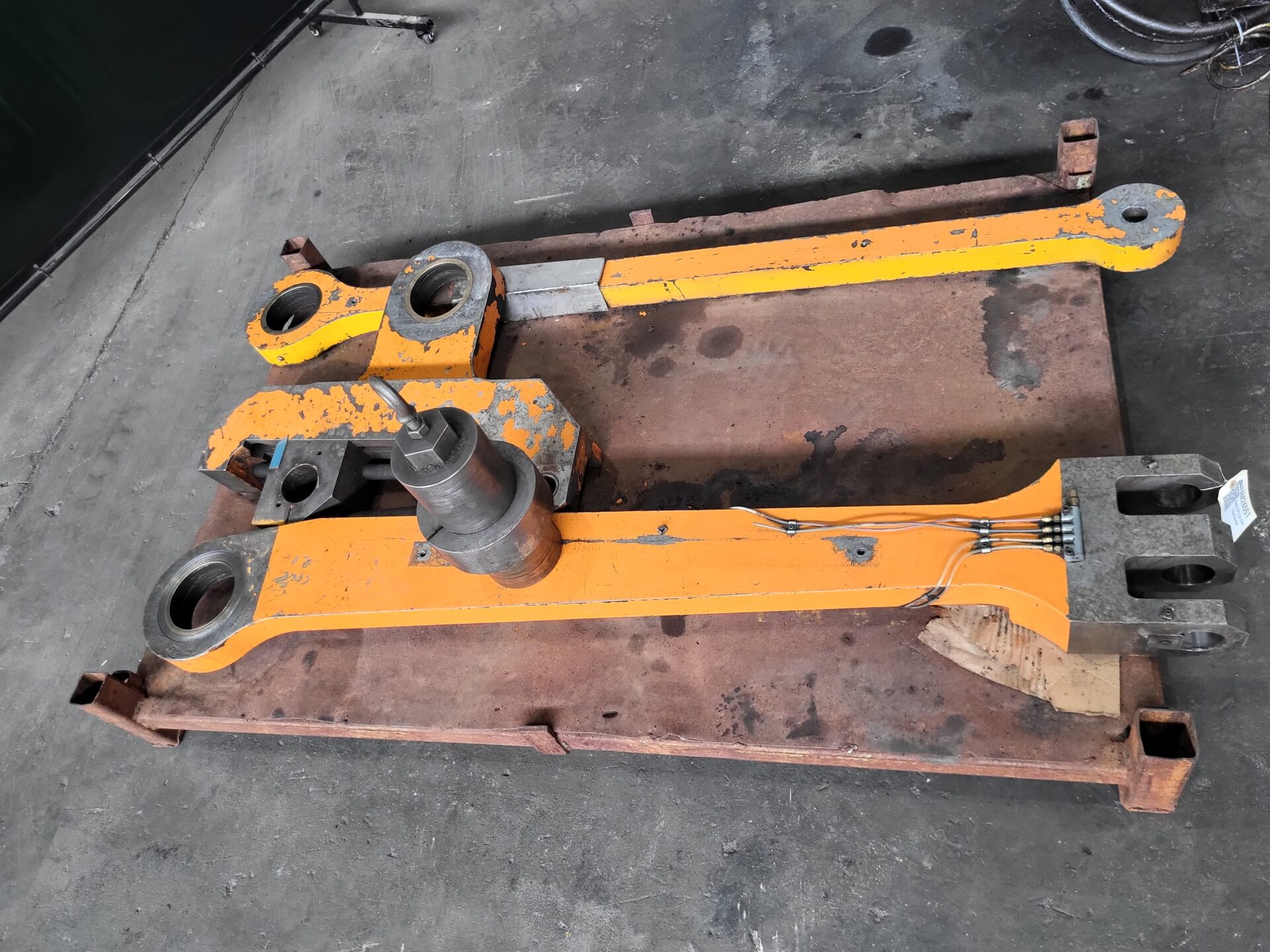

Overhead Tie-bars for Bend-Arm
Stationary-Arm and Wiper-die

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
