Home Benders Tube Benders/Pipe Benders 8″ Pines 6 Tube Bender

8″ Pines 6 Tube Bender - AM23982

Product Details

Stock Number	AM23982
Brand	Pines
Capacity	8.00 inches

Specifications

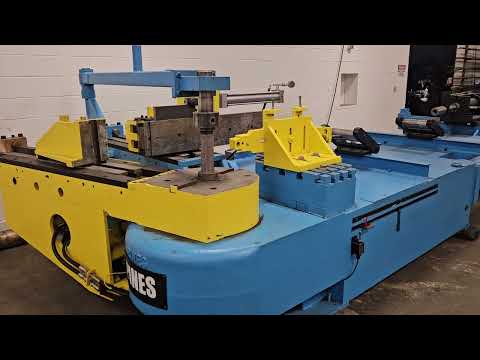

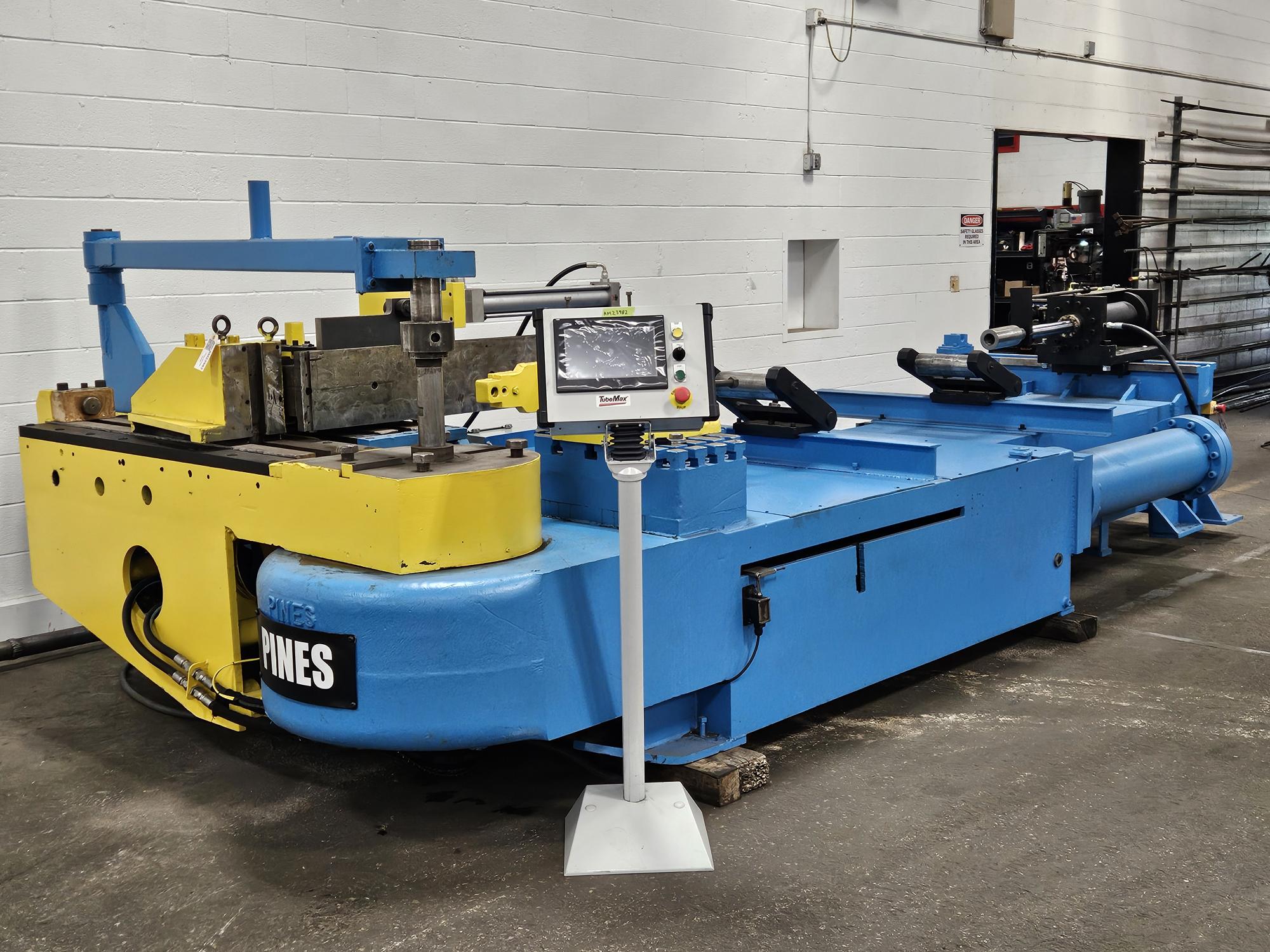

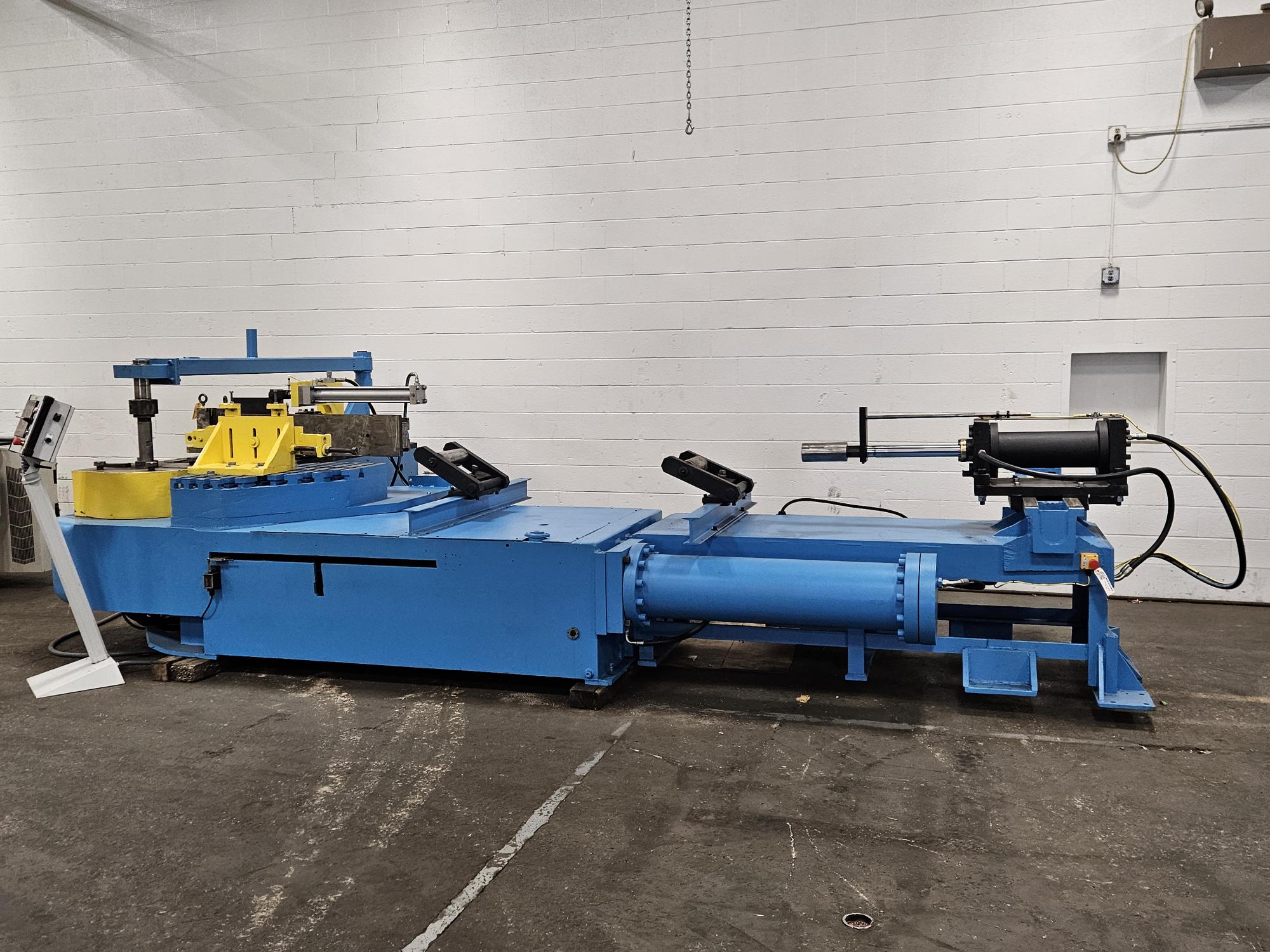

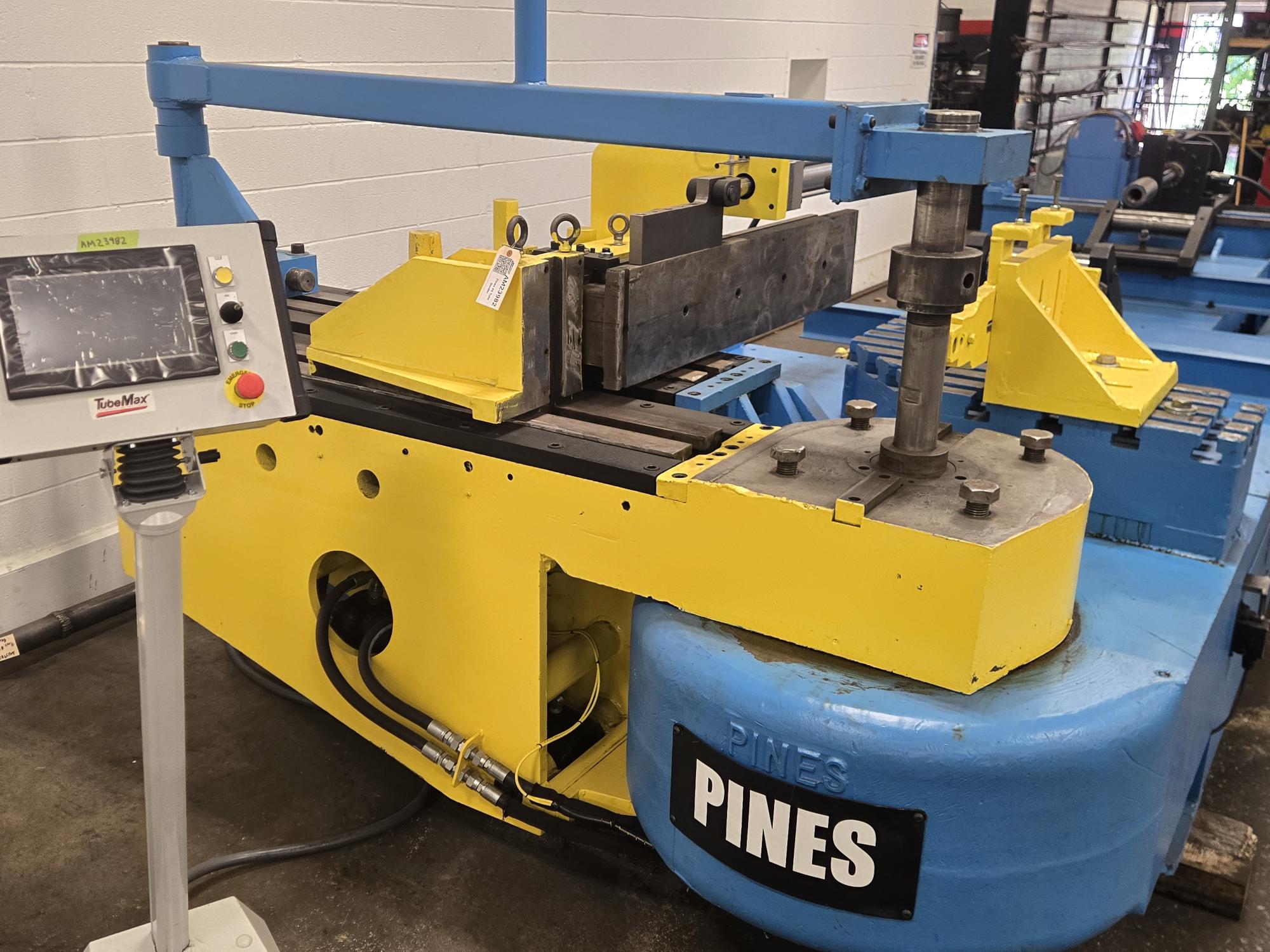

8″ Pines 6 Tube Bender

Pines horizontal heavy duty mandrel pipe and tube bender refurbished
Model: 6

Specifications:

Maximum bending capacity:
Round tube (non-ferrous): 8″ OD x .375″ WT
Round tube (mild steel): 8″ OD x .250″ WT
Round tube (stainless steel): 8″ OD x .172″ WT
Pipe size: 6″ SCH 80
Maximum tube length over mandrel: 250″ (approx.)
Maximum degree of bend: 180° + springback
Bend-Arm Speed: .242 seconds per degree (.69 RPM)
Bending Rotation: left hand (counter-clockwise)

Includes:

AM Industrial Programmable Operator Control Pedestal
Allen Bradley PLC and Related Components
Pressure die assist
Overhead tie bar
Wiper die mount

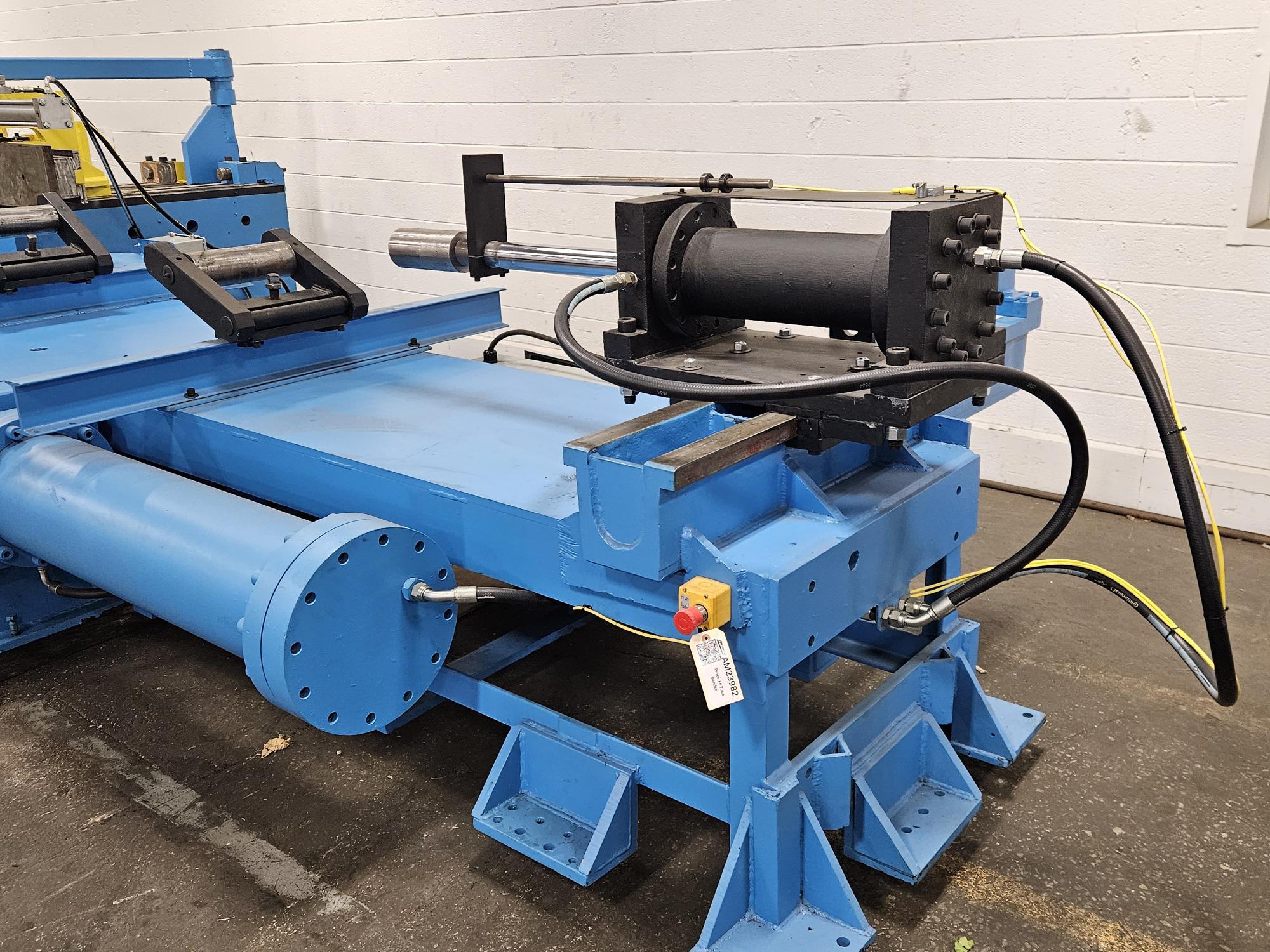

Hydraulic mandrel extractor

Refurbishment Includes:

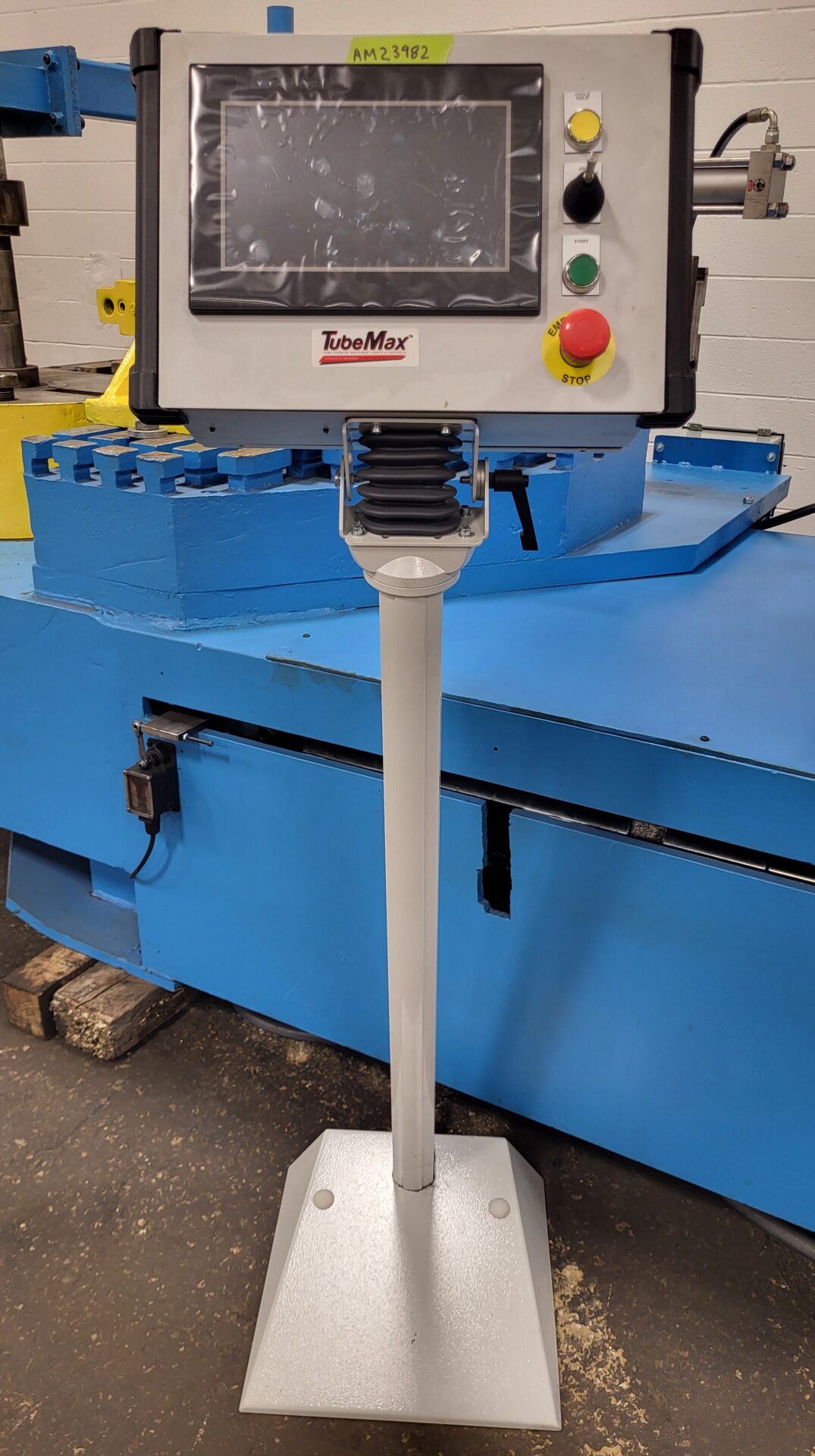

New Touchscreen Programmable Control
New Encoder for Accurate Degree of Bend
Prime and Paint
Pressure Die Assist
New wiring
New hydraulic hoses
New hydraulic valves
New Hydraulic Pump
Rebuild / Rechrome cylinders
Readjust / Remachine / Replace head slides and gibs
Discounted Price, As Above, Cycled Under Power, Fob Cleveland, OHIO

Maintenance Instructions

Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
Confirm the emergency STOP buttons are working properly.
If the machine is hydraulic confirm the pump and motor rotation is correct.
Perform all necessary tooling adjustments before running a cycle.
To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
