3″ SMS 200 Tube Bender

Product Details
Stock Number AM23552
Brand SMS
Capacity 3.00 inches
Specifications

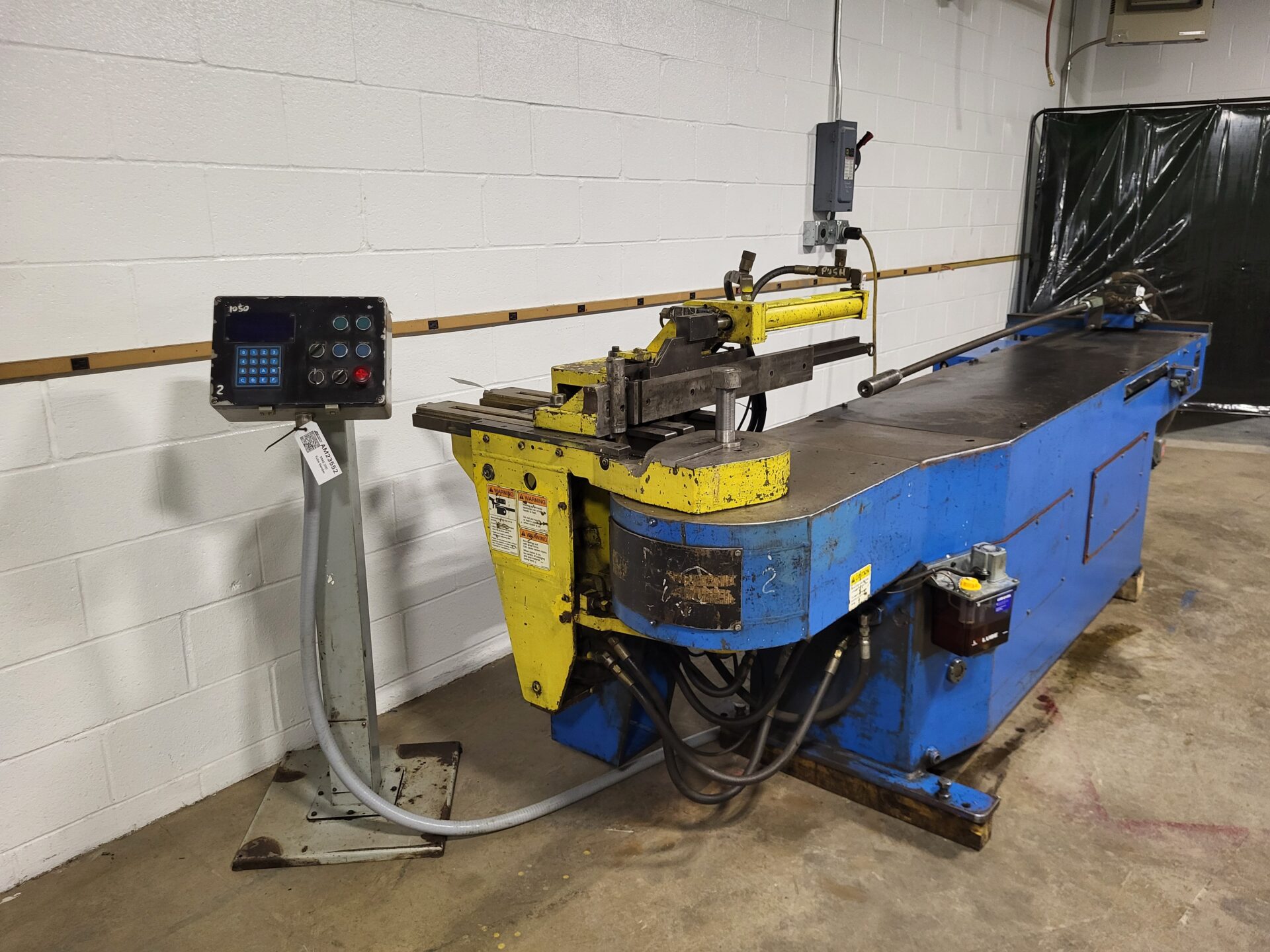

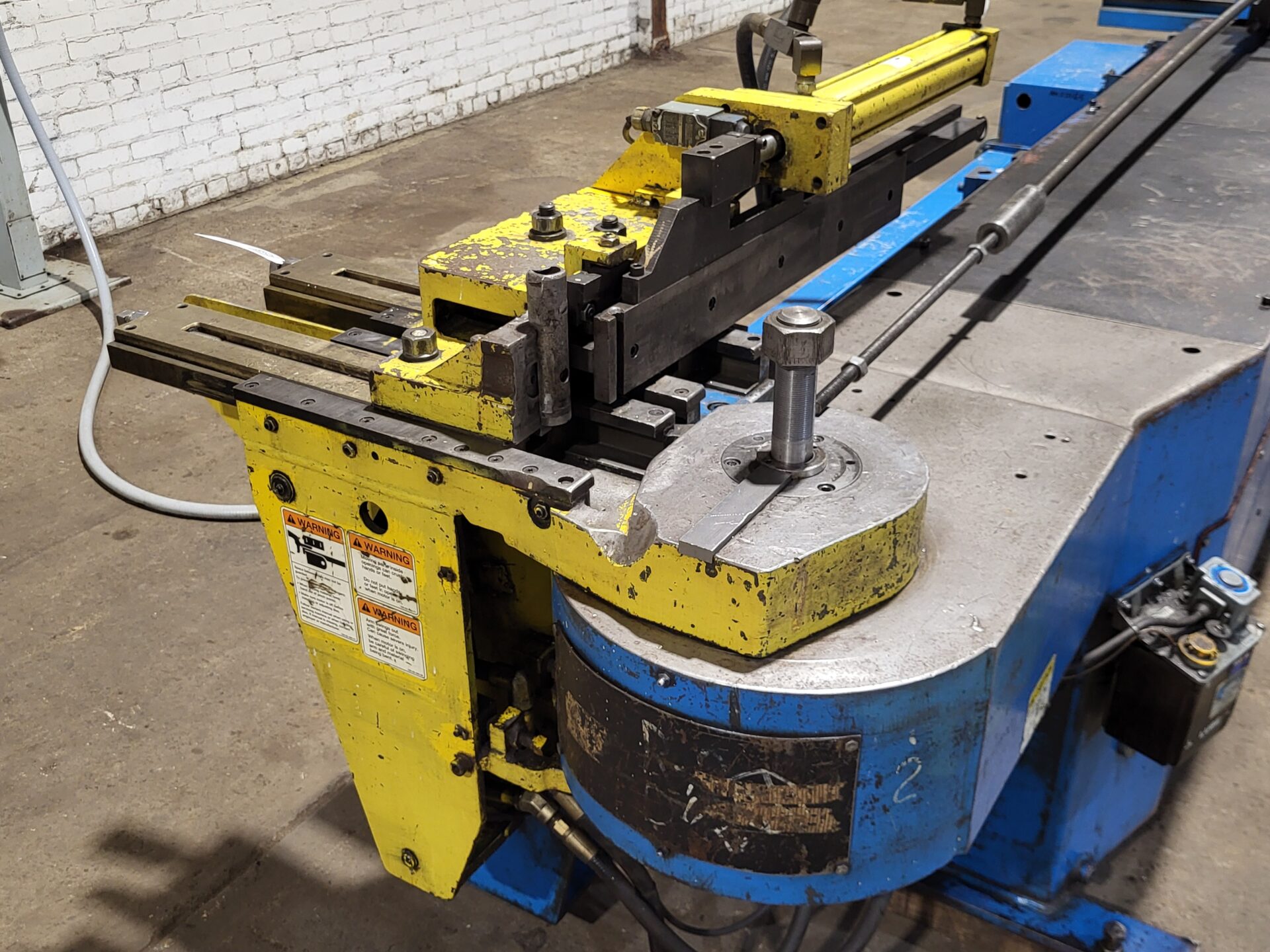

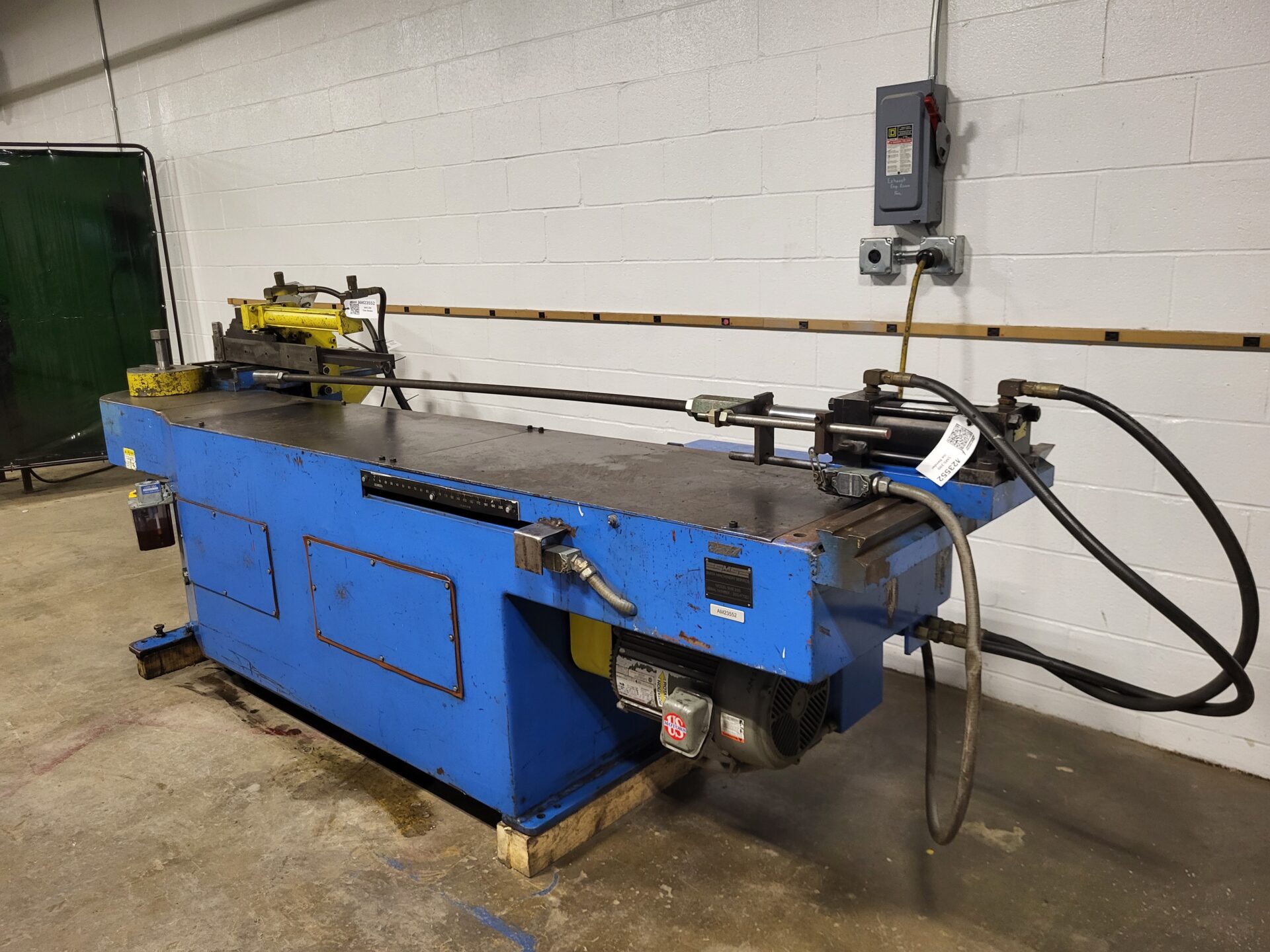

3″ SMS 200 Tube Bender

  • Pines / SMS horizontal mandrel type tube bending machine
  • Model: SMS 200

Specifications:

  • Minimum bending OD: 1/4″
  • Maximum bending OD: 3” OD
  • Maximum tube length over mandrel: 92” (approx.)
  • Maximum degree of bend: 180° + springback
  • Bending rotation: Left hand (counter-clockwise)

Includes:

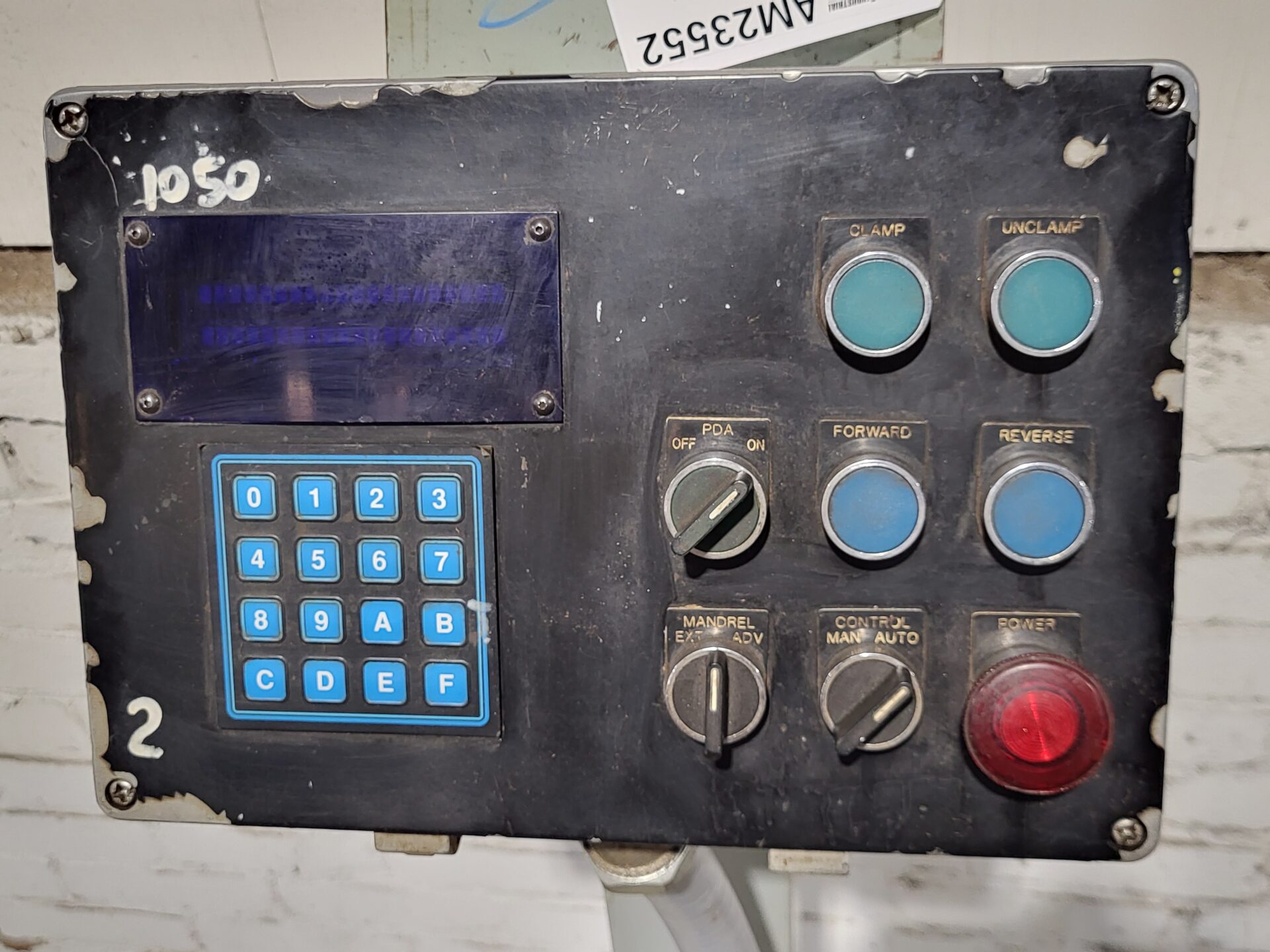

  • Programmable pedestal control
  • Encoder for accurate degree of bend

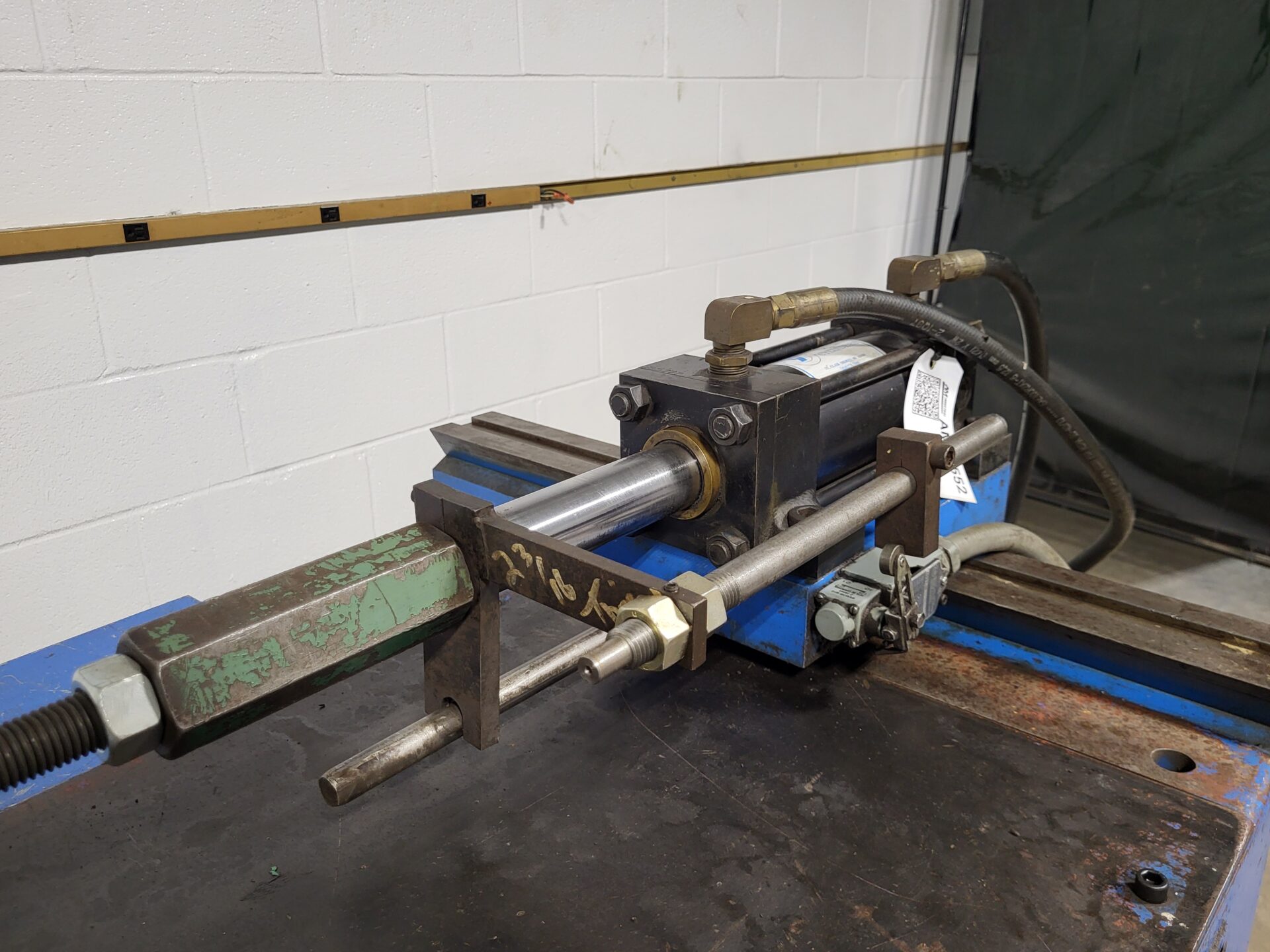

  • Hydraulic mandrel extractor
  • Hydraulic pressure die assist
  • Automatic machine lubrication
  • Vickers hydraulic valves
  • 240/460 Volt
  • 60 Hz
  • 3 Phase Electrics
Maintenance Instructions
  • Ensure the area is cleaned and ready for the machine installation. Check the location to ensure the machine is located near suitable electrical power.
  • Before releasing the machine for production, ensure all guards, covers, and safety devices are installed or set up to meet local safety codes.
  • If the machine has a hydraulic oil system, be sure it is filled to a suitable level with clean oil.
  • Confirm the emergency STOP buttons are working properly.
  • If the machine is hydraulic confirm the pump and motor rotation is correct.
  • Perform all necessary tooling adjustments before running a cycle.
  • To prevent unauthorized use of the machine, switch the disconnect to the off position and lockout/tagout according to best practices.
